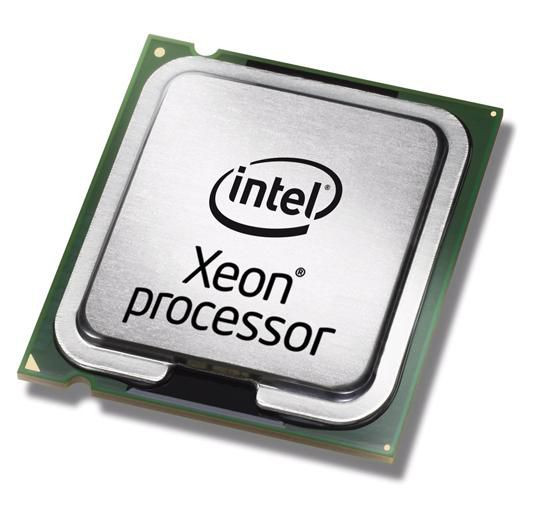

Hewlett Packard Enterprise 609136-L21-RFB Intel Xeon E5620 609136-L21-RFB

Performance. Efficiency. Agility.

Intel’s newest dual-core processor for dual processor (DP) servers and workstations delivers a new level of energy-efficient performance from the innovative Intel® Core™ microarchitecture, optimized for low-power, dual-core, 64-bit computing.

Intel® Core™ microarchitecture

Better performance on multiple application types and user environments at a substantially reduce power envelope.

1066 and 1333 MHz system bus

Faster system bus speeds than previous generations for increased throughput.

Intel® Virtualization Technology

New processor hardware enhancements that support software-based virtualization, enabling migration of more environments — including 64-bit OSs and applications — to virtual environments.

Intel® Extended Memory 64 Technology (Intel® EM64T)

Flexibility for 64-bit and 32-bit applications and operating systems.

Enhanced Intel® Speedstep™ Technology

Helps reduce average system power consumption and potentially improves system acoustics.

Features



Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Supported instruction sets



SSE4.2


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066


Memory types supported by processor



DDR3-SDRAM


Other features



Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



1 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.75 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



25.6 GB/s


Number of QPI links



2


Processor base frequency



2.4 GHz


Processor boost frequency



2.66 GHz


Processor cache



12 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel® Xeon® 5000 Sequence


Processor frequency



2.4 GHz


Processor lithography



32 nm


Processor model



E5620


Processor operating modes



32-bit, 64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



8


Stepping



B1


System bus rate



5.86 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



Yes


Intel® Smart Cache



Yes


Intel® Turbo Boost Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
