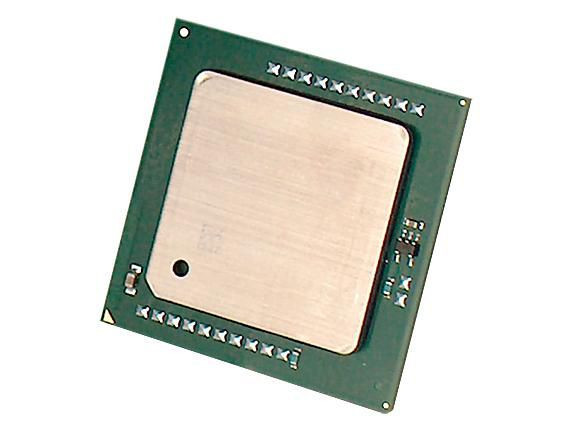

Hewlett Packard Enterprise 612468-L21-RFB Intel Xeon L5630 612468-L21-RFB

Intel Virtualization Technology (VT-x)

Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel 64

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Features



Embedded options available



Yes


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Supported instruction sets



SSE4.2


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



63.1 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



1 kg


Power



Thermal Design Power (TDP)



40 Watt


VID Voltage Range



0.75 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



25.6 GB/s


Number of QPI links



2


Processor base frequency



2.13 GHz


Processor boost frequency



2.4 GHz


Processor cache



12 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



2.13 GHz


Processor lithography



32 nm


Processor model



L5630


Processor operating modes



32-bit, 64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



8


Stepping



B1


System bus rate



5.86 GT/s


Thermal Design Power (TDP)



40 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Smart Cache



Yes


Intel� Turbo Boost Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
