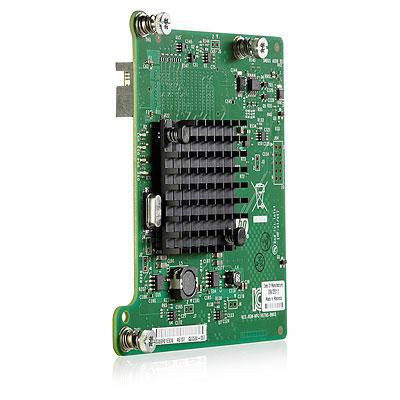

Hewlett Packard Enterprise 615729-B21-RFB Sealed Spa ETHERNET 1GB 4P 615729-B21-RFB

Overview
- The HP 366M is a PCIe 2.1 quad-port 1Gb Ethernet mezzanine network adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the bridgeless Intel� I350 controller, it is the follow-on adapter to the HP NC364m. The total aggregate throughput of 4Gbps meets the needs of customers wanting high bandwidth but not yet ready to move to 10 Gigabit Ethernet.
- Support for VMware NetQueue, Microsoft VMQ, and Intel VMDq meets the performance demands of consolidated virtual workloads.
- Other features supported on the HP 366M include RSS, PXE, checksum offload, VLAN, jumbo frames, iSCSI acceleration and iSCSI remote boot.

Features
- First quad-port 1GbE mezzanine adapter for HP BladeSystem Gen8 servers offers network port density
- New bridgeless quad-port design with PCIe 2.1 support offers greater throughput for I/O intensive applications like virtualization, firewall and other security, network segmentation, and other bandwidth hungry applications

Design



Internal



Yes


Network



Cabling technology



10/100/1000BaseT(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x


Package dimensions



Gross Weight (Package, kg)



2 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Host interface



PCI Express


Interface



Ethernet


Power



Power consumption (typical)



3 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Homepage



http://h18000.www1.hp.com/products/quickspecs/division/division.html#12922


Warranty



1 Year(s)
