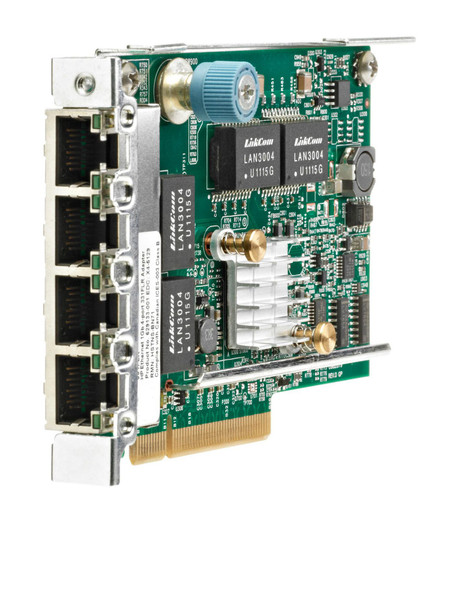

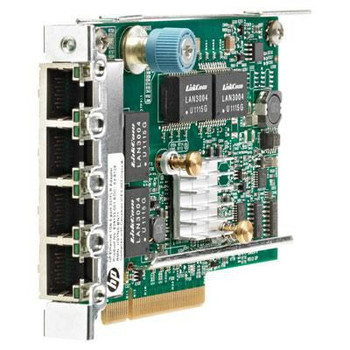

Hewlett Packard Enterprise 629135-B22-RFB 1Gb Ethernet 4P 331FLR 629135-B22-RFB

The HP Ethernet 1Gb 4-port 331FLR Adapter for select HP ProLiant Gen8 and Gen9 rack servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption.

The HP 331FLR is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4Gb meets the needs of customers desiring high bandwidth.

The HP 331FLR supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HP Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ.

Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

Design



Chipset



BCM5719


Component for



Server


Internal



Yes


Product colour



Aluminium, Green


Recommended usage



Server


Network



Bandwidth



8 Gbit/s


Cabling technology



10/100/1000BaseT(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Other features



Chipset



BCM5719


Data transfer rate



1 GT/s


Harmonized System (HS) code



85176990


Power supply



5.5 Watt


Package dimensions (verified)



Depth Verified



24.1 cm


Gross Weight Verified



0.232 kg


Height Verified



7 cm


Width Verified



45.7 cm


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Host interface



PCI Express


Interface



Ethernet / WLAN


PCI version



2.0


Product dimensions



Net Weight (Product, kg)



0.132 kg


System requirements



Server operating systems supported



Windows Server 2008


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
