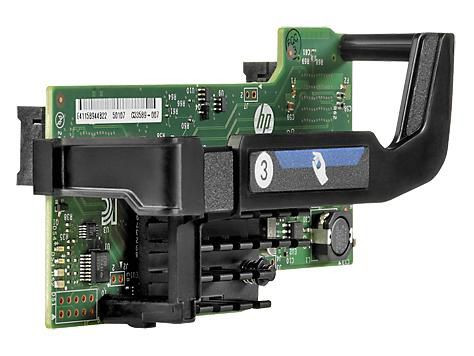

Hewlett Packard Enterprise 652500-B21-RFB ETHERNET 1GB 2P 361FLB Adapter 652500-B21-RFB

The HP 361FLB is a dual port 1Gb Ethernet FlexibleLOM mezzanine adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the Intel� I350 controller, it offers customers an entry choice with an easy transition to upgrade later to 10GbE while protecting their server investment.

The 361FLB can be purchased while configuring the BladeSystem or as a separate option. New features supported with the HP 361FLB include enhanced Virtualization (VMQ, NetQueue, VMDq), new I/O innovations with Intel Integrated I/O and Data Direct I/O, new Power Management Technologies with DMA Coalescing, and IEEE 1588. The 361FLB ships with advanced server features including support for failover and load balancing, TCP/IP checksum offloading, large send offloading, Wake-on-LAN, PXE, jumbo frames, and VLAN tagging.

Features
Dual port 1GbE FlexibleLOM for HP BladeSystem Gen8 servers offers a feature rich 1GbE choice

- HP 361FLB provides networking features to free critical server resources
- Easy transition for later upgrade to 10GbE while protecting server investment
- Support for Time Stamping and Time Synchronization features, and new power saving features such as DMA Coalescing
- Support for latest virtualization features such as VMware NetQueue, Microsoft VMQ, and Intel VMD; VLAN support with 8 queues per port and the option for port partitioning
- Support for networking features including PXE, RSS, Large Send offload, Checksum Offload, Jumbo Frames, iSCSI Acceleration, and iSCSI Remote Boot

Design



Internal



Yes


Network



Cabling technology



10/100/1000BaseT(X)


Ethernet LAN data rates



10, 100, 1000


Jumbo frames support



Yes


LAN controller



Intel� I350


Maximum data transfer rate



2000 Mbit/s


Networking standards



IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x


Quality of Service (QoS) support



Yes


Other features



Connector(s)



2


Package dimensions



Gross Weight (Package, kg)



5.9 kg


Ports & interfaces



Connectivity technology



Wired


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



5.800000000000001 kg


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
