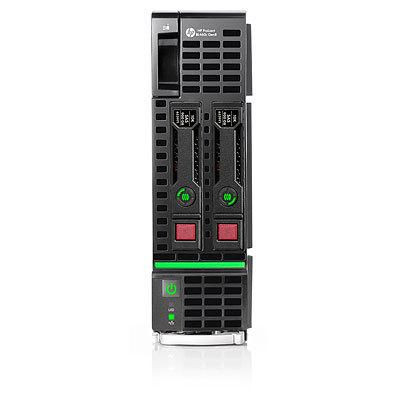

Hewlett Packard Enterprise 666157-B21-RFB CtoProLiant BL460c Gen8 666157-B21-RFB

The HP ProLiant BL460c Gen8 is a dual-socket server blade engineered for unprecedented performance, enhanced flexibility and simplified management which makes it the standard for data center computing. The ProLiant BL460c Gen8 Server packs in more performance with a 33% increase in memory DIMM count, Intel� Xeon� E5-2600 Processor with added support for 130W processors, faster I/O slots and enhanced Smart Array Controller that now ships with 512MB Flash Back Write Cache standard. In addition, it is also more flexible with the HP FlexibleLOM which provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware.

Features

Enhanced Processor Performance and Capabilities
- The latest 2-socket Intel� Xeon� E5-2600 Processor Family providing more performance and up to 8 cores with the same TDP
- Support for up to 130 watts per processor providing a wider choice of processor options and greater performance
- HP Smart Socket Guide provides quick and precise processor installation or upgrade
- Intel� Turbo Boost 2, Intel� AVX, and enhanced Intel� QPI link speed provide more performance when needed, accelerate floating point intensive applications, and provide faster connections throughout the server

Improved Memory Capacity, Performance, and Power
- 16 DIMM slots provide up to 512MB of memory (33% increase over the previous generation)
- The four memory channels per processor provide no reduction in memory capacity or speed as DIMMs are added
- Operate RDIMMs at low power (1.35V LVDIMMs) without reducing performance, saving an estimated 15-25% wattage per DIMM
- Lower cost UDIMM capacity has increased to 128GB (nearly three times that of the previous generation)
- Choice of operating at a high performance mode (1.5V RDIMMs at 1600MHz), in a power saving, standard performance mode (1.35V LRDIMM/LVRDIMMs at 1333MHz), or a low cost mode (1.35V UDIMMs at 1333MHz)

The New HP iLO Management Engine
- HP iLO Management Engine is a complete set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 Servers
- The new HP iLO simplifies server setup, health monitoring, power and thermal control, and promotes remote administration. Access, deploy, and manage your server anytime from anywhere with your Smartphone device
- Now with HP Agentless Management, the base hardware monitoring and alerting capability of the BL460c Gen8 are built into the system (running on the HP iLO chipset) and starts working the moment that a power cord and an Ethernet cable is connected to the server
- The new HP Active Health System monitors and records changes in the server hardware and system configuration, it assists in diagnosing problems and delivering rapid resolution when system failures occur
- HP FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), supports WOL, and provides a shared iLO port for ease of use.

Design



Chassis type



Blade


Expansion slots



PCI Express slots version



3.0


Features



Images Type Map



divimg src="https://ark.intel.com/inc/images/diagrams/diagram-18.gif" title="Block Diagram" //div


Memory



ECC



Yes


Internal memory



64 GB


Internal memory type



DDR3-SDRAM


Memory clock speed



1333 MHz


Memory layout (slots x size)



8 x 8 GB


Memory slots



16x DIMM


Network



Ethernet LAN



Yes


Other features



Disk array controller



Smart Array P220i


Graphics card



G200


Graphics card family



Matrox


Package dimensions



Gross Weight (Package, kg)



10 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



Redundant power supply (RPS) support



No


Processor



Bus type



QPI


Conflict-Free processor



No


CPU multiplier (bus/core ratio)



33


ECC supported by processor



Yes


Embedded options available



No


Execute Disable Bit



Yes


FSB Parity



No


Graphics & IMC lithography



32 nm


Idle States



Yes


Maximum internal memory supported by processor



750 GB


Maximum number of PCI Express lanes



40


Maximum number of SMP processors



2


Memory bandwidth supported by processor (max)



51.2 GB/s


Memory channels supported by processor



Quad


Memory clock speeds supported by processor



800, 1066, 1333, 1600


Memory types supported by processor



DDR3-SDRAM


Motherboard chipset



Intel C600


Number of processors installed



2


Number of QPI links



2


PCI Express configurations



x4, x8, x16


Physical Address Extension (PAE)



46 bit


Processor boost frequency



3.3 GHz


Processor cache



20 MB


Processor cache type



Smart Cache


Processor codename



Sandy Bridge EP


Processor cores



8


Processor family



Intel� Xeon� E5 Family


Processor frequency



2.6 GHz


Processor lithography



32 nm


Processor manufacturer



Intel


Processor model



E5-2670


Processor operating modes



64-bit


Processor package size



52.5 x 45.0 mm


Processor series



Intel Xeon E5-2600


Processor socket



LGA 2011 (Socket R)


Processor threads



16


Scalability



2S


Stepping



C2


Supported instruction sets



AVX


System bus rate



8 GT/s


Tcase



81.8 �C


Thermal Design Power (TDP)



115 Watt


Thermal Monitoring Technologies



Yes


Processor special features



CPU configuration (max)



2


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Clear Video Technology



No


Intel Demand Based Switching



Yes


Intel Dual Display Capable Technology



No


Intel Enhanced Halt State



Yes


Intel Fast Memory Access



No


Intel FDI Technology



No


Intel Flex Memory Access



No


Intel Identity Protection Technology version



0.00


Intel Rapid Storage Technology



No


Intel Secure Key Technology version



1.00


Intel Trusted Execution Technology



Yes


Intel TSX-NI version



0.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Anti-Theft Technology (Intel� AT)



No


Intel� Clear Video HD Technology (Intel� CVT HD)



No


Intel� Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Identity Protection Technology (Intel� IPT)



No


Intel� Insider�



No


Intel� InTru� 3D Technology



No


Intel� My WiFi Technology (Intel� MWT)



No


Intel� Quick Sync Video Technology



No


Intel� Secure Key



Yes


Intel� Turbo Boost Technology



2.0


Intel� Wireless Display (Intel� WiDi)



No


Processor ARK ID



64595


Product dimensions



Net Weight (Product, kg)



10 kg


Product Depth



51.76 cm


Product Height



18.07 cm


Product Width



5.54 cm


Software



Compatible operating systems



Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer


Operating system installed



No


Storage



HDD interface



Serial ATA, Serial Attached SCSI (SAS)


HDD size



2.5 "


Hot-swap



Yes


Number of HDDs supported



2


Optical drive type



No


RAID levels



0, 1


RAID support



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Homepage



http://h18000.www1.hp.com/products/quickspecs/division/division.html#12922


Warranty



1 Year(s)
