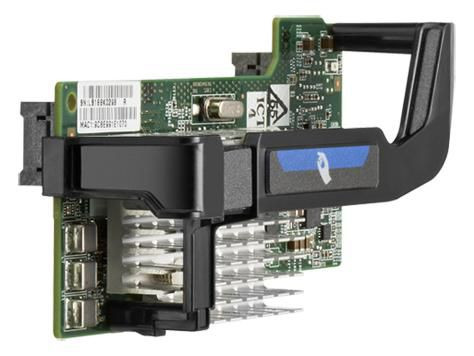

Hewlett Packard Enterprise 700741-B21-RFB FlexFabric 10Gb 2P 534FLB 700741-B21-RFB

Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The FlexFabric 10Gb 2-port 534FLB Adapter increases throughput for the HP ProLiant Gen8 Blade Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in an SFP+ adapter configuration that includes new storage I/O functionality, making it a full Converged Network Adapter.

This is the solution of choice for workload-intensive computing environments.

Features

Accelerates Server Performance

- The HP FlexFabric 10Gb 2-port 534FLB Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.

Robust Virtualization Capabilities

- The HP FlexFabric 10Gb 2-port 534FLB Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Enhances network management and efficiency with support for VLAN tagging.
- Streamlines Deployment and Management
- Increases network flexibility, scalability, and capacity with HP Flex-10 technology.
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies the NIC and storage management using HP Virtual Connect.

Design



Chipset



Broadcom BCM 57810S


Component for



Server


Internal



Yes


Recommended usage



Server


Network



Maximum data transfer rate



10000 Mbit/s


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 55 �C


Other features



Chipset



Broadcom BCM 57810S


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Packaging data



Quantity



1


Ports & interfaces



Connectivity technology



Wired


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


Power



Power consumption (typical)



12 Watt


Product dimensions



Net Weight (Product, kg)



0.4 kg


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
