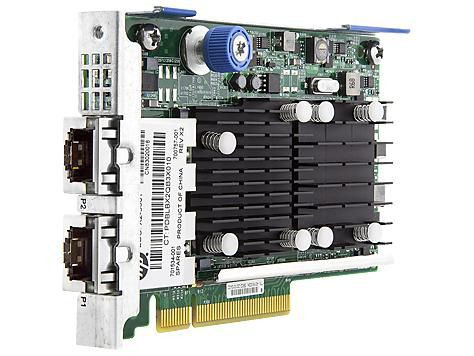

Hewlett Packard Enterprise 700759-B21 FlexFabric 10Gb 2P 533FLR-T 700759-B21

Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The HP FlexFabric 10Gb 2-port 533FLR-T Adapter increases throughput for the HP ProLiant Gen8 DL and SL Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in a 10GBASE-T adapter configuration.

This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution.

Accelerates Server Performance
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.

Robust Virtualization Capabilities
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Supports Vmware NetQueue and Microsoft VMQ technologies.
- Enhances network management and efficiency with support for VLAN tagging.

Streamlines Deployment and Management
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies NIC and storage management using HP ProActive Insight architecture.
- Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.

Design



Chipset



Broadcom BCM57810S


Internal



Yes


PCI Card form factor



Full-height (low-profile)


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000, 10000


Full duplex



Yes


Maximum data transfer rate



20000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Other features



Chipset



Broadcom BCM57810S


Flash memory



256 MB


Harmonized System (HS) code



85176990


Package dimensions



Depth (package,cm)



25.2 cm


Gross Weight (Package, kg)



0.295 kg


Height (package,cm)



6.5 cm


Width (package,cm)



22.2 cm


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


Power



Power consumption (typical)



15.5 Watt


Product dimensions



Net Weight (Product, kg)



0.22 kg


Sustainability



Sustainability certificates



RoHS


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
