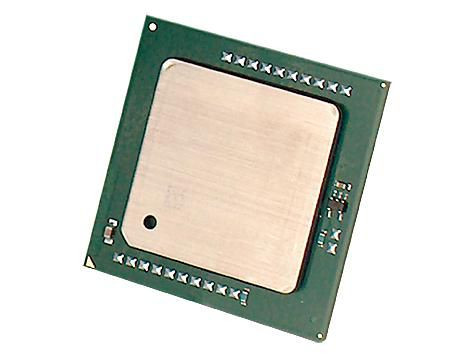

Hewlett Packard Enterprise 712743-B21-RFB DL360p Gen8 E5-2603v2SDHS Kit 712743-B21-RFB

Intel® vPro™ Technology
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Features



Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



40


PCI Express slots version



3.0


Physical Address Extension (PAE)



Yes


Scalability



2S


Supported instruction sets



AVX


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



768 GB


Memory channels



Quad-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



71 °C


Other features



Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.6 - 1.30 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



42.6 GB/s


Number of QPI links



2


Processor base frequency



1.8 GHz


Processor boost frequency



1.8 GHz


Processor cache



10 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel® Xeon® E5 V2 Family


Processor frequency



1.8 GHz


Processor lithography



22 nm


Processor model



E5-2603V2


Processor operating modes



64-bit


Processor socket



Socket S1


Processor threads



4


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.6 - 1.30 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Flex Memory Access



No


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



No


Intel® Identity Protection Technology (Intel® IPT)



No


Intel® Secure Key



Yes


Intel® Turbo Boost Technology



No


Intel® vPro™ Platform Eligibility



Yes


Intel® vPro™ Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.4 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
