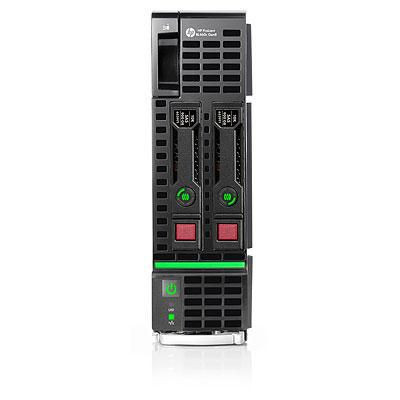

Hewlett Packard Enterprise 735151-B21-RFB ProLiant BL460c Gen8 735151-B21-RFB

- Choice of Intel� E5-2600 Series Processors, up to two processors supported
- Sixteen (16) DIMM slots
- HP Smart Array P220i Controller with 512MB FBWC (RAID 0/1)
- Up to two (2) small form factor (SFF) hot plug hard disk drives
- HP ProLiant BL460c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures
- HP Integrated Lights-Out 4 (iLO 4) management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration

Design



Chassis type



Blade


Optical drive type



N


Product series



ProLiant BL


Expansion slots



PCI Express slots version



3.0


Features



Embedded options available



No


Number of QPI links



2


Optical drive type



N


Memory



Internal memory



4 GB


Internal memory type



DDR3-SDRAM


Maximum internal memory



256 GB


Memory clock speed



1866 MHz


Memory slots



16


Network



Ethernet LAN



Yes


Other features



CPU configuration (max)



2


Data protection features



Advanced ECC; Memory Lock Step Mode; Memory Online Spare Mode


Expansion slots



(2) Maximum - For detail descriptions reference the QuickSpec


Memory slots



16 DIMM slots


Storage drive controller



Smart Array P220i; Smart Array P230i; Applicable to all models


Tape or Disk Drives (range)



(2) SFF SAS/SATA/SSD; Hot plug, depending on model


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


USB 2.0 ports quantity



1


Power



Power supply type



Enclosure-based


Redundant power supply (RPS) support



No


Thermal Design Power (TDP)



80 Watt


Processor



Bus type



QPI


Conflict-Free processor



No


ECC supported by processor



Yes


Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


Maximum internal memory supported by processor



768 GB


Maximum number of PCI Express lanes



40


Memory bandwidth supported by processor (max)



42.6 GB/s


Memory channels supported by processor



Quad


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Number of processors installed



1


Number of QPI links



2


PCI Express configurations



x4, x8, x16


Physical Address Extension (PAE)



46 bit


Processor cache



10 MB


Processor cache type



Smart Cache


Processor codename



Ivy Bridge EP


Processor cores



4


Processor family



Intel� Xeon� E5 Family


Processor frequency



1.8 GHz


Processor lithography



22 nm


Processor manufacturer



Intel


Processor model



E5-2603V2


Processor operating modes



64-bit


Processor package size



52.5 x 45 mm


Processor series



Intel Xeon E5-2600 v2


Processor socket



LGA 2011 (Socket R)


Processor threads



4


Scalability



2S


Supported instruction sets



AVX


System bus rate



6.4 GT/s


Tcase



71 �C


Thermal Design Power (TDP)



80 Watt


Thermal Monitoring Technologies



Yes


Processor special features



CPU configuration (max)



2


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Flex Memory Access



No


Intel Identity Protection Technology version



0.00


Intel Secure Key Technology version



1.00


Intel Trusted Execution Technology



Yes


Intel TSX-NI



No


Intel TSX-NI version



0.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Identity Protection Technology (Intel� IPT)



No


Intel� OS Guard



Yes


Intel� Secure Key



Yes


Intel� Turbo Boost Technology



No


Intel� vPro� Technology



Yes


Processor ARK ID



76157


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



51.76 cm


Product Height



18.07 cm


Product Width



5.54 cm


Storage



HDD interface



Serial ATA, Serial Attached SCSI (SAS)


HDD size



2.5 "


Optical drive type



N


RAID support



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
