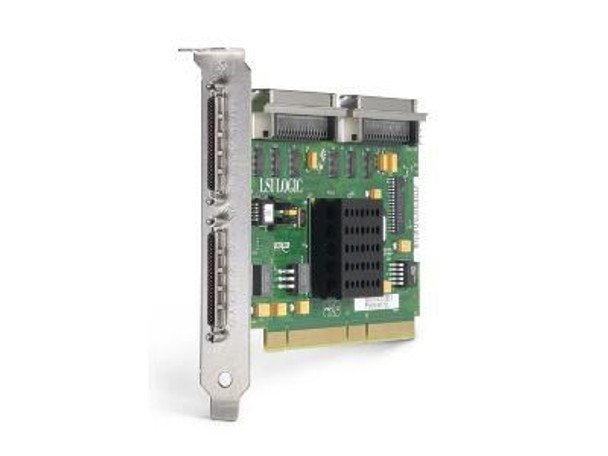

Hewlett Packard Enterprise A7173A-RFB PCI-X Dual-Channel A7173A-RFB

The HP A7173A LVD PCI-X dual-port SCSI adapter features two independent SCSI Ultra320 ports allowing an aggregate SCSI speed of 640 MBps. It allows connections of up to 30 SCSI devices (15 per channel). Devices can be asynchronous, fast, ultra, or ultra320. It provides 16-bit Low Voltage Differential (LVD) and 16-bit Single-Ended (SE) SCSI solutions for the HP 9000 servers, using only one PCI slot. With up to 640 MBps and capability of up to 100,000 I/Os per second, this adapter is ideal for systems where data intensive and high availability applications are being used. It is backward compatible and features domain validation technology by automatically detecting and compensating for marginally performing hardware by reducing communication speed, thus allowing a customer to use SCSI with data integrity, even when conditions do not permit transfers at the speeds negotiated between the initiator and the target. The user is then notified so that the problem can be corrected.

Design



Internal



Yes


Product colour



Black, Green, Silver, White


Purpose



Server


Operational conditions



Operating relative humidity (H-H)



40 - 60 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Channels quantity



2 channels


Connectivity technology



Wired


Ports quantity



2


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Ports & interfaces



Host interface



PCI-X


Output interface



SCSI


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



16.8 cm


Product Height



1.8 cm


Product Width



10.7 cm


Vendor information



Brand Name


Hewlett Packard Enterprise


Homepage



http://welcome.hp.com/country/us/en/prodserv/printer-computer-accessories.html


Warranty



1 Year(s)
