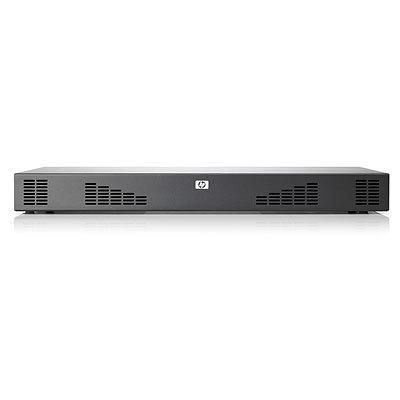

Hewlett Packard Enterprise AF622A 4x1Ex32 KVM IP Cnsl G2VM CAC AF622A

Do you need a solution that is secure and can manage your servers multiple operating systems remotely?; The HP IP Console Switch G2 with Virtual Media and Common Access Card (CAC) support is a key component in managing the heterogeneous data center and along with the IP Console Viewer software allows remote access to multiple servers running various operating systems. Virtual Media capability allows a removable drive or ISO image to be remotely mapped to an attached server in the data center or a remote office for software installations and upgrades. An intuitive Local Console User Interface provides menus for configuration, virtual media, display, and even security and upgrades from the local console that is the same as the On Board Web Interface (OBWI) used for remote management. The term CAC stands for Common Access Card, also known as �Smart Cards� allows government agencies and other companies to implement two-factor authentication to increase security of their Datacenters.

Performance, Management and Security.
The HP IP Console Switch with Virtual Media capability allows a removable drive or ISO image to be remotely mapped to an attached server in the data center or a remote office for software installations and upgrades. The HP IP Console Switch G2 with Virtual Media offers an intuitive Local Consol User Interface that provides menus for configuration, virtual media, display and even security and upgrades from the local console that is the same as the On Board Web Interface (OBWI) used for remote management. The HP IP Console Switch G2 with Virtual Media comes with a Common Access Card also known as Smart Cards, allows government agencies and others companies to implement two-factor authentication to increase security in the their Datacenters.

Design



Product colour



Black


Logistics data



Harmonized System (HS) code



85176200


Network



Ethernet LAN (RJ-45) ports



1


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



10 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Other features



Connectivity technology



Wired


Dimensions (WxDxH)



438 x 236.8 x 43.6 mm


Ports quantity



32


Power requirements



0.25/0.5A


Weight (imperial)



7.6 lbs


Package dimensions



Depth (package,cm)



53 cm


Gross Weight (Package, kg)



4.21 kg


Height (package,cm)



21.2 cm


Width (package,cm)



33 cm


Performance



Maximum resolution



1600 x 1200 Pixels


Number of users



6 user(s)


Ports & interfaces



DC-in jack



Yes


Number of computers controlled



32


USB 2.0 ports quantity



4


Video port type



VGA


Power



Power consumption (typical)



100 Watt


Product dimensions



Net Weight (Product, kg)



4.2 kg


Product Depth



23.68 cm


Product Height



4.36 cm


Product Width



43.8 cm


Vendor information



Brand Name


Hewlett Packard Enterprise


Homepage



http://welcome.hp.com/country/us/en/prodserv/printer-computer-accessories.html


Warranty



1 Year(s)
