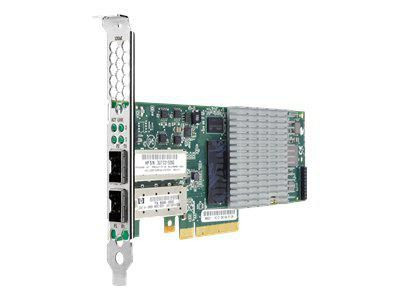

Hewlett Packard Enterprise BS668A-RFB CN1000Q Dual Port BS668A-RFB

The HP Converged Network Adapters (CNAs) are dual port adapters that provide Ethernet, iSCSI, and Fibre Channel (FC) connectivity over 10 GbE using both Fibre Channel over Ethernet (FCoE) and Converged Enhanced Ethernet (CEE) standards. By consolidating Ethernet, iSCSI, and Fibre Channel onto a converged adapter, HP CNAs reduce the number of separate adapters and cables required for your datacenter and also reduce operational, power and cooling costs while preserving existing Ethernet and Fibre Channel infrastructure. HP CNAs have also been thoroughly tested with HP ProLiant servers and HP Top of Rack (ToR) switches to ensure an optimal HP FCoE solution for your datacenter.

Converged Infrastructure

� Combines the functionality of a NIC (Ethernet/iSCSI) and Fibre Channel Host Bus Adapter (FC HBA) onto a single converged adapter reducing the number of adapters and cables thus reducing acquisition and operational costs.


Reliability

� Sends Fibre Channel data packets via Fibre Channel over Ethernet (FCoE) using Converged Enhanced Ethernet (CEE) functionality ensuring high standards of data integrity and lossless Ethernet.


Provides HP ProLiant Connectivity to Storage and Networks

� Provides an HP-branded Converged Network Adapter solution which has undergone extensive HP interoperability testing for connecting HP ProLiant servers into storage and networking environments.


Flexible Connect

� Choose between SFP+ SR (optical) or direct attach copper cable connectivity allowing maximum flexibility in connecting to HP FCoE Converged Network Switches.

Design



Internal



Yes


Network



Copper ethernet cabling technology



1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T, 10GBASE-T


Ethernet LAN



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Other features



Channels quantity



2 channels


Data transfer rate



10 Gbit/s


Dimensions (WxDxH)



22.4 x 31.2 x 6.4 mm


Slot type



PCIe


Package dimensions



Gross Weight (Package, kg)



0.3 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.19999999999999998 kg


System requirements



Compatible operating systems



Windows 2008 Windows Hyper-V Red Hat Linux SUSE Linux VMware


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
