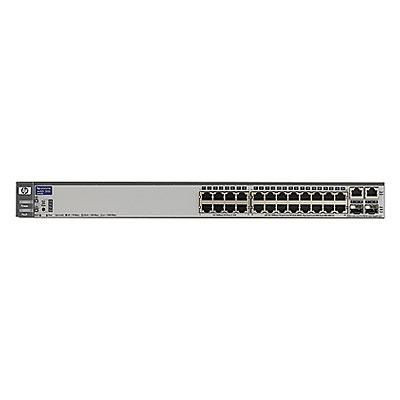

Hewlett Packard Enterprise J4900C Switch 2626-PWR 24P J4900C

The ProCurve Switch 2600 series is a collection of low-cost, stackable, multi-layer, managed switches with 48, 24, or 8 auto-sensing 10/100 ports and dual-personality ports for 10/100/1000 or mini-GBIC connectivity. The ProCurve Switch 2650-PWR, 2626-PWR, and 2600-8-PWR are IEEE 802.3af-compliant for Power over Ethernet and provide up to 15.4 W per port. A redundant external power supply is also available as an accessory.

Features

Data transmission



MAC address table



8000 entries


Maximum data transfer rate



1 Gbit/s


Number of queues



4


Number of trunks



6


Supported data transfer rates



10/100 Mbps


Switching capacity



9.6 Gbit/s


Throughput



6.6 Mpps


Design



Electromagnetic compatibility



FCC, VCCI, EN/CISPR


Safety



CSA, cUL, EN, NOM, UL


Management features



MIB support



MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x


Number of VLANs



4096


Spanning tree protocol



Yes


Operational conditions



Heat dissipation



342 BTU/h


Operating altitude



0 - 4600 m


Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



32 - 122 °F


Operating temperature (T-T)



0 - 50 °C


Storage relative humidity (H-H)



15 - 95 %


Storage temperature (T-T)



-40 - 70 °C


Other features



Connectivity technology



Wired


Dimensions (W x D x H) (imperial)



17.32 x 12.8 x 1.73 "


Dimensions (WxDxH)



439.9 x 325.1 x 43.9 mm


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Latency



13.3µs


Mounting



EIA


Networking features



Gigabit Ethernet


Weight (imperial)



9.15 lbs


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



4.15 kg


Performance



Built-in processor



Yes


Flash memory



8 MB


Internal memory



32 MB


Memory type



SDRAM


Noise level



50 dB


Processor frequency



266 MHz


Processor model



PowerPC MPC824


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Console port



RS-232


SFP/SFP+ slots quantity



2


Power



Input current



1.5 A


Input voltage



100 - 240 V


Power consumption (typical)



100 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4.050000000000001 kg


Protocols



Management protocols



IGMPv2, LLDP, SNMPv1/v2c/v3


Supported network protocols



UDP, TFTP, ICMP, TCP, ARP, TELNET, BOOTP, SNTPv4


Security



DHCP features



DHCP server, DHCP client


MAC address filtering



Yes


Security algorithms



802.1x RADIUS, SSH, SSL/TLS


SSH/SSL support



Yes


Static port security



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
