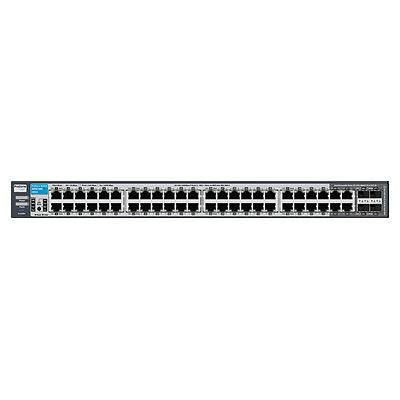

Hewlett Packard Enterprise J9050A-RFB ProCurve Switch 2900-48G J9050A-RFB

The ProCurve 2900 Switch series consists of two switches: the ProCurve Switch 2900-24G with 24 10/100/1000 ports and the ProCurve Switch 2900-48G with 48 10/100/1000 ports. Both have 4 dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, by including four integrated 10-Gigabit Ethernet (two CX4 ports and two X2 slots), the 2900 series offers the most flexible and easy-to-deploy multiple 10-Gigabit stacking and uplinks in its class. Together with IP static & RIP routing, robust security and management features, free lifetime warranty, and free software updates, the 2900 series is a cost-effective, future-proof solution for customers who are building high-performance networks.

Communications:RFC 783 TFTP; RFC 951 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; RFC 2453 RIPv2; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2597 DiffServ Assured Forwarding (AF); RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 1058 RIP; RFC 1724 RIPv2 MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); XRMON; sFlow; RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3046 DHCP Relay Agent Information Option

Data transmission



MAC address table



2000 entries


Maximum data transfer rate



10 Gbit/s


Switching capacity



148 Gbit/s


Design



Electromagnetic compatibility



FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A


Safety



CSA 22.2 No. 60950; UL 60950; IEC60950; EN60950


Stackable



No


Management features



Switch type



Managed


Operational conditions



Heat dissipation



683 BTU/h


Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



32 - 131 �F


Operating temperature (T-T)



0 - 55 �C


Storage relative humidity (H-H)



15 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Dimensions (WxDxH)



430 x 443 x 44 mm


Electromagnetic emissions



FCC Class A; EN55022/CISPR-22 Class A; VCCI Class A


Electromagnetic immunity



EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3


Input frequency



50/60 Hz


Input voltage



100-127 / 200-240 V


Latency



1000 Mb 3.7 ?s (FIFO 64); 10 Gbps 2.1 ?s (FIFO 64)


Management platform



HP ProCurve Manager Plus; HP ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)


Memory and processor



Processor: Freescale PowerPC 8540 @ 667 MHz, 4 MB flash, packet buffer size: 22.5 MB


Operating altitude (imperial)



up to 15000 ft.


Power requirements



The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz


Switch fabric speed



153.6 Gbps


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Console port



RS-232


Power



Input current



2 - 4 A


Power consumption (typical)



200 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
