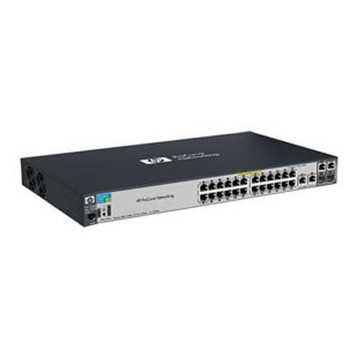

Hewlett Packard Enterprise J9138A-RFB PROCURVE 2520-24-POE SWITCH J9138A-RFB

The HP E2520 Switch Series is ideally suited for small and medium businesses looking to deploy voice, video, or wireless solutions that require Power over Ethernet (PoE) connectivity. The series consists of four switches: the HP E2520-8-PoE, the HP E2520-24-PoE, the HP E2520-8G-PoE, and the HP E2520-24G-PoE Switch. The four models offer a choice of either Fast Ethernet or Gigabit Ethernet connectivity. All models also include support for dual-personality Gigabit Ethernet ports that can be used for either copper or fiber connectivity. All products are fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the products provide deployment flexibility with compact, quiet, and energy-efficient designs.

Quality of Service (QoS)

• Selectable queue configuration: increases performance and/or traffic reliability by selecting the number of queues that best meet the requirements of your network applications; switch will map 8 priorities to either 2 or 4 queues


Management

• Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications.


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all ports


Performance

• Switch on a chip: provides highly integrated, high-performance switch design with a non-blocking architecture


Resiliency and high availability

• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.


Layer 2 switching

• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and up to 256 port-based VLANs simultaneously


Security

• Manager and operator privilege levels: enables read-only (operator) and read-write (manager) access on management interfaces

Data transmission



MAC address table



8000 entries


Maximum data transfer rate



1 Gbit/s


Number of queues



4


Packet buffer memory



0.384 MB


Supported data transfer rates



10/100 Mbps


Switching capacity



12.8 Gbit/s


Throughput



9.5 Mpps


Design



Electromagnetic compatibility



FCC, VCCI, EN, CISPR 22, AS/NZS, IEC/EN


Safety



cUL, CE, UL, CAN/CSA, EN, AS/NZS, IEC


Management features



MIB support



MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x


Port mirroring



Yes


Spanning tree protocol



Yes


Operational conditions



Heat dissipation



208 BTU/h


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



0 - 45 °C


Storage relative humidity (H-H)



15 - 95 %


Storage temperature (T-T)



-40 - 70 °C


Other features



Acoustic pressure emissions



36 dB


Connectivity technology



Wired


Dimensions (W x D x H) (imperial)



17.44 x 9.69 x 1.75 "


Dimensions (WxDxH)



246.1 x 443 x 44.5 mm


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Latency



1.9µs/1.5µs


Networking features



Gigabit Ethernet


Weight (imperial)



7.1 lbs


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Performance



Built-in processor



Yes


Flash memory



32 MB


Internal memory



128 MB


Memory type



DDR2-SDRAM


Noise level



27.9 dB


Processor frequency



266 MHz


Processor model



PowerPC MPC8313


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Combo SFP ports quantity



2


Console port



RS-232


Gigabit Ethernet (copper) ports quantity



2


SFP/SFP+ slots quantity



2


Power



Input current



1.6 - 3.3 A


Input voltage



100 - 240 V


Power consumption (typical)



257 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.38 kg


Protocols



Management protocols



IGMPv3, LLDP, SNMPv1/v2c/v3


Supported network protocols



IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, SNTPv4


Security



DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


Security algorithms



802.1x RADIUS, SSH, SSL/TLS


SSH/SSL support



Yes


Static port security



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
