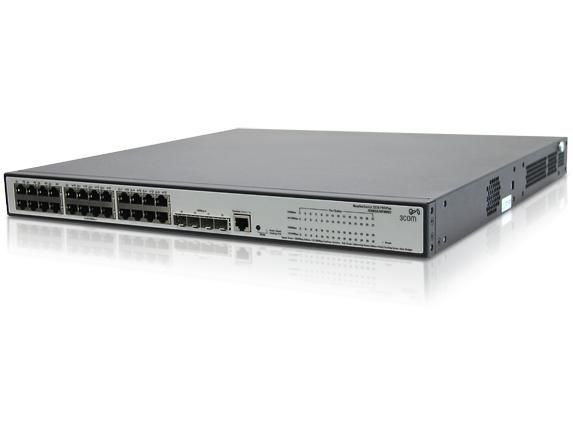

Hewlett Packard Enterprise JE008A-RFB ProCurve V1910-24G-PoE 170W JE008A-RFB

HP 1910 switches are advanced smart managed fixed-configuration Gigabit and Fast Ethernet switches designed for small businesses in an easy-to-administer solution. The series has 8 gigabit models and 5 Fast Ethernet models. The gigabit models are : 8-, 16-, 24-, and 48-port 10/100/1000 non-PoE models; and two 8-port and two 24-port 10/100/1000 PoE models. Gigabit models have additional true Gigabit SFP ports for fiber connectivity. The Fast Ethernet models are : 8-. 24- and 48- 10/100 non-PoE models and 8-, 24- 10/100 PoE+ models. The Fast Ethernet models come with additional 2 combo uplink ports . All HP 1910 models support rack mounting or desktop operation. Customizable features include basic layer 2 features like VLANs and link aggregation as well as advanced features such as Layer 3 static routing, IPv6, ACLs and Spanning Tree Protocols. HP 1910 switches come with a lifetime warranty covering the unit, fans, and power supplies.

Management

� Simple Web management: allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported


Quality of Service (QoS)

� Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic


Connectivity

� IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. IPv6 routing: supports IPv6 static routes. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic.


Security

� Advanced access control lists (ACLs): enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access


Performance

� Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port


Layer 2 switching

� VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously


Layer 3 services

� Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Data transmission



Latency (1 Gbps)



5 �s


Latency (10-100 Mbps)



5 �s


MAC address table



8192 entries


Packet buffer memory



0.5 MB


Switching capacity



56 Gbit/s


Throughput



41.7 Mpps


Design



Electromagnetic compatibility



FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A


Form factor



1U


Product colour



Black


Rack mounting



Yes


Safety



UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Flow control support



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



8.3 kg


Performance



Built-in processor



Yes


Flash memory



128 MB


Internal memory



128 MB


Processor frequency



333 MHz


Processor model



ARM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



255 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



170 Watt


Product dimensions



Net Weight (Product, kg)



8.200000000000001 kg


Product Depth



42.01 cm


Product Height



4.32 cm


Product Width



44.2 cm


Security



DHCP features



DHCP client


IGMP snooping



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
