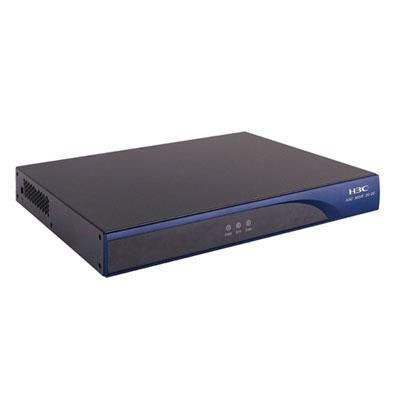

Hewlett Packard Enterprise JF283A-RFB A-MSR20-20 MULTI-SERVICE JF283A-RFB

The HP A-MSR20 Series features a modular design that delivers unmatched flexibility for small branch offices and small to medium-sized businesses, while reducing complexity, simplifying management, and increasing control. The A-MSR20 routers provide a full-featured, resilient routing platform, including IPv6 and MPLS, up to 180 Kpps forwarding capacity, and 100 Mbps encryption. They offer lasting investment protection, and help reduce capital and operating expenses. These routers enable an agile, flexible network infrastructure that offers the ability to quickly adapt to changing business requirements, while delivering integrated, concurrent services on a single, easy-to-manage platform.

Quality of Service (QoS)

� Traffic policing: supports Committed Access Rate (CAR) and line rate


Management

� Industry-standard CLI with a hierarchical structure: reduces training time and expenses, and increases productivity in multivendor installations


Connectivity

� 3G access support: allows use of SIC 3G module for high reliability; supports popular USB 3G modem


Performance

� Powerful encryption capacity: includes embedded hardware encryption accelerator to improve encryption performance


Resiliency and high availability

� Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments


Layer 2 switching

� Spanning Tree: fully supports standard IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol


Layer 3 services

� Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Design



Product colour



Blue, Grey


DSL features



ADSL



Yes


Features



Built-in processor



Yes


Electromagnetic compatibility



EN, ICES, ANSI, ETSI, AS/NZS, EMC, FCC


Heat dissipation



184 BTU/h


Processor architecture



RISC


Processor frequency



400 MHz


Safety



UL, AS/NZS, EN, IEC, CAN/CSA, FDA


Management features



Quality of Service (QoS) support



Yes


Web-based management



No


Network



Cabling technology



10/100Base-T(X)


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100


Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3u


Supports ISDN connection



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



32 - 104 �F


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Connectivity technology



Wired


Dimensions (W x D x H) (imperial)



11.3 x 14.17 x 1.74 "


Dimensions (WxDxH)



287.1 x 360 x 44.2 mm


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Networking features



Fast Ethernet


Throughput



180 Kpps


Weight (imperial)



7.5 lbs


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Packaging data



Manual



Yes


Quick start guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Expansion slots



2 x SIC


Power



Power consumption (typical)



54 Watt


Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.38 kg


Protocols



DHCP client



Yes


DHCP server



Yes


Management protocols



NTPv3, IGMPv1/2/3, SNMPv1/2/3


Supported network protocols



IPv6, IPv4, BGP, BGP-3, BGPv4, PPP, UDP, TFTP, TCP, ICMP, ARP, TELNET, FTP, IRDP, PAP, CIDR, DHCP/BOOTP, IPXCP, BCP, SMIv2, CHAP, VRRP, RSVP, LDP


Switching protocols



MPLS


Security



Access Control List (ACL)



Yes


Firewall security



Virtual private network (VPN) firewall


MAC address filtering



Yes


MAC address table



10000 entries


Security algorithms



802.1x RADIUS, EAP-TLS, MD5, SSL/TLS


System event log



Yes


VPN support



HMAC-MD5-96, HMAC-SHA1-96, DES-CBC, BGP/MPLS, BGP-4


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)


WAN connection



Ethernet WAN



Yes
