Hewlett Packard Enterprise

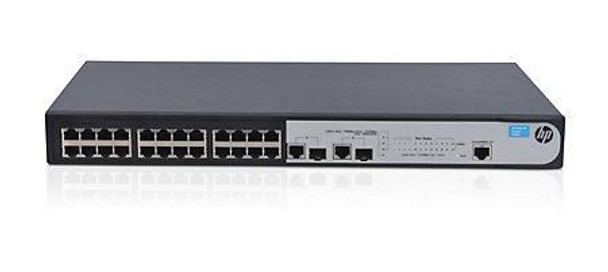

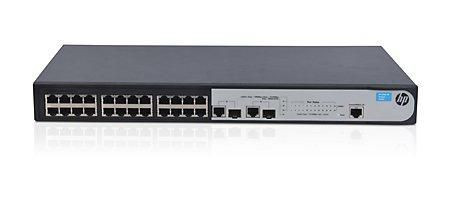

Hewlett Packard Enterprise JG538A-RFB V1910-24 Switch JG538A-RFB
- UPC:
- 5712505707166
- MPN:
- JG538A-RFB
- Condition:
- Refurbished
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
HP 1910 switches are advanced smart managed fixed-configuration Gigabit and Fast Ethernet switches designed for small businesses in an easy-to-administer solution. The series has 8 gigabit models and 5 Fast Ethernet models. The gigabit models are : 8-, 16-, 24-, and 48-port 10/100/1000 non-PoE models; and two 8-port and two 24-port 10/100/1000 PoE models. Gigabit models have additional true Gigabit SFP ports for fiber connectivity. The Fast Ethernet models are : 8-. 24- and 48- 10/100 non-PoE models and 8-, 24- 10/100 PoE+ models. The Fast Ethernet models come with additional 2 combo uplink ports . All HP 1910 models support rack mounting or desktop operation. Customizable features include basic layer 2 features like VLANs and link aggregation as well as advanced features such as Layer 3 static routing, IPv6, ACLs and Spanning Tree Protocols. HP 1910 switches come with a lifetime warranty covering the unit, fans, and power supplies.
Management
� Simple Web management: allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported
Quality of Service (QoS)
� Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Connectivity
� IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. IPv6 routing: supports IPv6 static routes. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic.
Security
� Advanced access control lists (ACLs): enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
Performance
� Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Layer 2 switching
� VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Layer 3 services
� Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
Data transmission
Jumbo frames support
Yes
Latency (1 Gbps)
5 �s
Latency (10-100 Mbps)
5 �s
MAC address table
8192 entries
Packet buffer memory
0.5 MB
Switching capacity
8.8 Gbit/s
Throughput
6.6 Mpps
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Stackable
Yes
Management features
Quality of Service (QoS) support
Yes
Switch layer
L3
Switch type
Managed
Web-based management
Yes
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-sensing
Yes
Broadcast storm control
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port mirroring
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
3.5 kg
Performance
Built-in processor
Yes
Flash memory
32 MB
Internal memory
128 MB
Processor frequency
500 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
2
Console port
RJ-45
Installed SFP modules quantity
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
12 Watt
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
3.4 kg
Product Depth
17.3 cm
Product Height
4.4 cm
Product Width
44 cm
Security
Access Control List (ACL)
Yes
DHCP features
DHCP client
IGMP snooping
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Hewlett Packard Enterprise
Warranty
1 Year(s)
View AllClose
Management
� Simple Web management: allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported
Quality of Service (QoS)
� Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Connectivity
� IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. IPv6 routing: supports IPv6 static routes. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic.
Security
� Advanced access control lists (ACLs): enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
Performance
� Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Layer 2 switching
� VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Layer 3 services
� Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
Data transmission
Jumbo frames support
Yes
Latency (1 Gbps)
5 �s
Latency (10-100 Mbps)
5 �s
MAC address table
8192 entries
Packet buffer memory
0.5 MB
Switching capacity
8.8 Gbit/s
Throughput
6.6 Mpps
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Stackable
Yes
Management features
Quality of Service (QoS) support
Yes
Switch layer
L3
Switch type
Managed
Web-based management
Yes
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-sensing
Yes
Broadcast storm control
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port mirroring
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
3.5 kg
Performance
Built-in processor
Yes
Flash memory
32 MB
Internal memory
128 MB
Processor frequency
500 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
2
Console port
RJ-45
Installed SFP modules quantity
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
12 Watt
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
3.4 kg
Product Depth
17.3 cm
Product Height
4.4 cm
Product Width
44 cm
Security
Access Control List (ACL)
Yes
DHCP features
DHCP client
IGMP snooping
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Hewlett Packard Enterprise
Warranty
1 Year(s)
