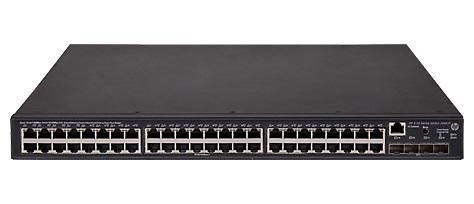

Hewlett Packard Enterprise JG937A-RFB 5130-48G-POE+-4SFP+ Eich JG937A-RFB

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified
management, and comprehensive security control policies are among the key features that distinguish this series.

Data transmission



Latency (1 Gbps)



5 �s


Latency (10 Gbps)



1.5 �s


MAC address table



16384 entries


Packet buffer memory



3 MB


Switching capacity



176 Gbit/s


Throughput



130.9 Mpps


Design



Form factor



1U


Product colour



Black


Rack mounting



Yes


Management features



MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



No


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Number of VLANs



4094


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



1671 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



58 cm


Gross Weight (Package, kg)



8.02 kg


Height (package,cm)



12 cm


Width (package,cm)



50 cm


Performance



Flash memory



128 MB


Internal memory



1024 MB


Memory type



SDRAM


Noise level



54.6 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Gigabit Ethernet (copper) ports quantity



48


SFP+ module slots quantity



4


Power



AC input voltage



100 - 240 V


Input current



10 A


Power consumption (typical)



490 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



48


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



7.92 kg


Product Depth



36 cm


Product Height



4.36 cm


Product Width



44 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
