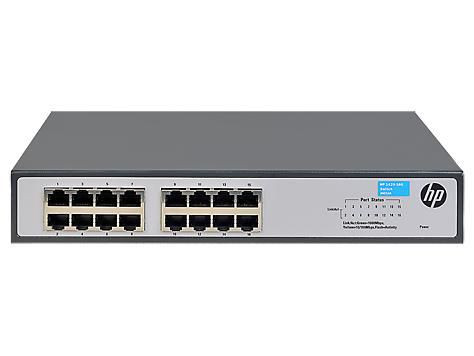

Hewlett Packard Enterprise JH016A-RFB 1420-16G Switch JH016A-RFB

The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage.

All models support silent fanless operation, automated features for hands off operation and low power consumption.

Features

Cost-effective, High-performance GbE Layer 2 Switching
- The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.
- Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network.
- Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port.

Flexible Choices To Meet Most Basic Layer 2 Networking Design Needs
- The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options.
- The 1420-24G-2SFP model with SFP uplinks is ideal where gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10GbE is needed.
- Power over Ethernet (PoE+) models deliver greater efficiency for powering IP phones, wireless access points, or video surveillance cameras without the cost of additional cabling.
- All HPE OfficeConnect 1420 Switch Series models are fanless for silent operation in office settings and include internal power supplies.
- Units can be deployed for desktop operation or can be rack mounted.

Automated Features for Hands-off Operation
- All HPE OfficeConnect 1420 Switch Series models are plug-and-play with zero configuration and no required ongoing administration.
- This unmanaged PoE+ model delivers fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.
- The HPE 1420-24G-2SFP+ 10G Uplink Switch requires no configuration beyond installation of optional 10GbE transceivers to achieve 10GbE speeds. Alternatively, use today with gigabit SFP transceivers if higher performance is merely a future requirement.
- IEEE 802.1p prioritization and other QoS features automate the preferred handling of high priority traffic, including Differentiated Services Code Point (DSCP) set priorities.
- The OfficeConnect 1420 Switch Series supports jumbo packets to improve the performance of large data transfers.

Cost-effective Ownership for Now and into the Future
- The HPE OfficeConnect 1420 Switch Series offers a cost-effective upgrade path to next-generation 10GbE networks to reduce performance bottlenecks
- The switch series includes PoE+ options to power IP devices without the cost of additional cabling for power.
- Green features include energy-efficient Ethernet IEEE 802.3az, auto-power down mode on idle ports, and power savings on short distance cables for low power consumption.
- This series comes with a Limited Lifetime Warranty providing next business day advance hardware replacement shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period.

Data transmission



Latency (1 Gbps)



16 µs


Latency (10-100 Mbps)



8 µs


MAC address table



8192 entries


Packet buffer memory



0.5 MB


Switching capacity



32 Gbit/s


Throughput



23.8 Mpps


Design



Form factor



1U


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 °C


Package dimensions



Depth (package,cm)



36 cm


Gross Weight (Package, kg)



2.06 kg


Height (package,cm)



11 cm


Width (package,cm)



29 cm


Performance



Flash memory



1 MB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



12 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2 kg


Product Depth



16.2 cm


Product Height



4.4 cm


Product Width



26.6 cm


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
