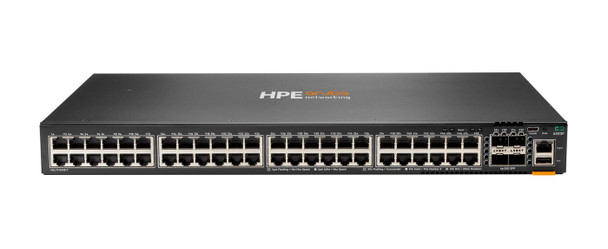

Hewlett Packard Enterprise JL667A Company CX 6300F L3 Gigabit JL667A

The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation and core deployments.

A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow�s unpredictable demands. This series has built-in, high-speed uplinks and include models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network.

A cloud-centric design with a fully programmable OS delivers automation and simplicity, including easy-to-use configuration tools for error-free installs. Built-in monitoring and analytics across the network provide operators with immediate troubleshooting and problem resolution insights.

Data transmission



Latency (1 Gbps)



2.28 �s


Latency (10 Gbps)



1.46 �s


Number of queues



8


Packet buffer memory



8 MB


Switching capacity



496 Gbit/s


Throughput



369 Mpps


Design



Airflow direction



Front-to-back airflow


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Management features



Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Multicast features



IPv4 multicast entries



8000


IPv6 multicast entries



8000


MLD entries



4000


Multicast MAC address table



32000 entries


Multicast support



Yes


Number of multicast groups filtered



8000


Network



10G support



Yes


Auto MDI/MDI-X



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt


Policy-based routing



Yes


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4600 m


Operating altitude



0 - 3040 m


Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



15 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Optical fiber



Transmission distance (max)



10 km


Package dimensions



Gross Weight (Package, kg)



4.46 kg


Packaging data



Rack mount kit



Yes


Performance



Built-in processor



Yes


Flash memory



32000 MB


Internal memory



8192 MB


Noise level



31.5 dB


Physical stacking (units)



10


Processor frequency



1800 MHz


Processor model



ARM Cortex-A72


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



USB


SFP module slots quantity



4


USB 2.0 ports quantity



1


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Input current



2.5/1.4 A


Number of power supply units



1


Power consumption (max)



74 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4.36 kg


Product Depth



32.7 cm


Product Height



4.39 cm


Product Width



44.2 cm


Protocols



Routing protocols



OSPF, OSPFv3


Security



Access Control List (ACL)



Yes


DHCP features



DHCP relay, DHCP server


IGMP entries



8000


SSH/SSL support



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
