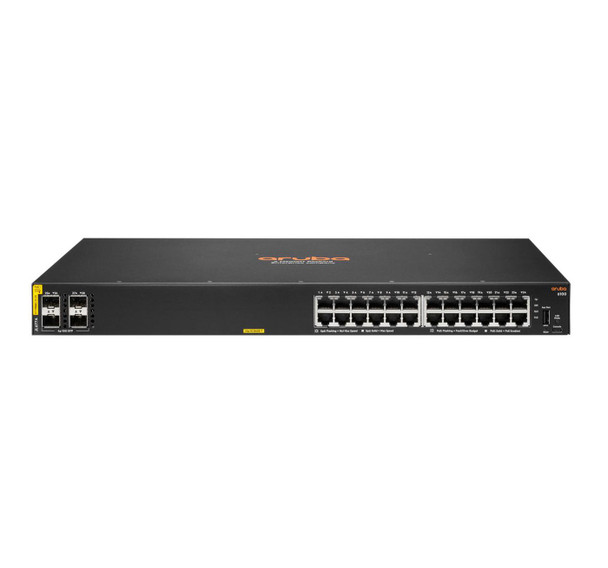

Hewlett Packard Enterprise JL677A#ABB-RFB Aruba 6100 24G CL4 PoE 4SFP+ JL677A#ABB-RFB

The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow�s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.

Features

Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power
- The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Simplified Configuration and Management
- The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Data transmission



Jumbo frames support



Yes


Latency (1 Gbps)



1.5 �s


Latency (10 Gbps)



1.8 �s


MAC address table



8192 entries


Packet buffer memory



12.38 MB


Switching capacity



128 Gbit/s


Throughput



95.2 Mpps


Design



Airflow direction



Side-to-side airflow


Form factor



1U


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



Yes


Flow control support



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



15 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.908 kg


Performance



Built-in processor



Yes


Flash memory



16 MB


Harmonized System (HS) code



85176990


Internal memory



4096 MB


Memory type



DDR3-SDRAM


Processor frequency



1016 MHz


Processor model



ARM Cortex-A9


Virtual stacking (units)



16


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



USB


SFP+ module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



32.7 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



0.858 kg


Product Depth



26.8 cm


Product Height



4.4 cm


Product Width



44.2 cm


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication


Authentication type



RADIUS, TACACS+


DHCP features



DHCP client


IGMP snooping



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
