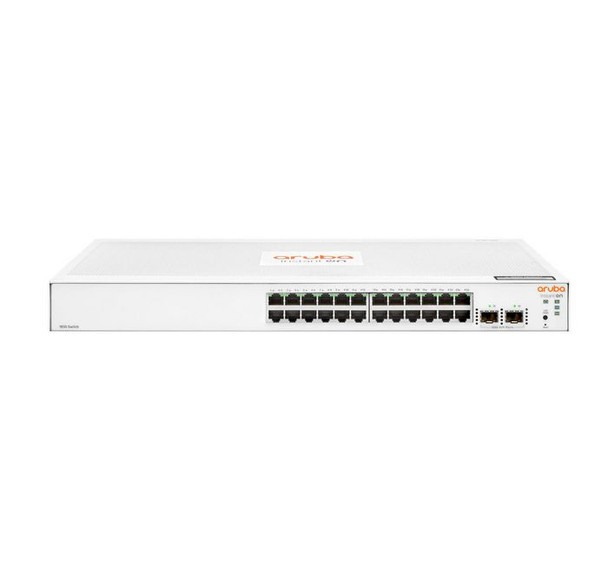

Hewlett Packard Enterprise JL812A Aruba Instant On 1830 24G JL812A

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses?looking for cost-effective wired infrastructure to keep up?with evolving network demands.?These entry-level, smart-managed switches?offer?Layer 2 switching capabilities,?Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Features

Gigabit Connectivity for Small Businesses
- Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

Simplify Network Deployment and Management
- The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
- Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Better Energy Efficient Features for Reducing Environmental Footprint
- The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

Data transmission



Jumbo frames support



Yes


Latency (1 Gbps)



2.8 �s


Latency (10-100 Mbps)



5.2 �s


MAC address table



16000 entries


Packet buffer memory



1.5 MB


Switching capacity



52 Gbit/s


Throughput



38.68 Mpps


Design



Form factor



1U


Rack mounting



Yes


Management features



Cloud-managed



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-sensing



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



15 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



15 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



3.24 kg


Performance



Built-in processor



Yes


Flash memory



256 MB


Internal memory



512 MB


Memory type



SDRAM


Processor frequency



800 MHz


Processor model



ARM Cortex-A9


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



7.8 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.49 kg


Product Depth



44.3 cm


Product Height



4.39 cm


Product Width



21.59 cm


Security



DHCP features



DHCP client


IGMP snooping



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
