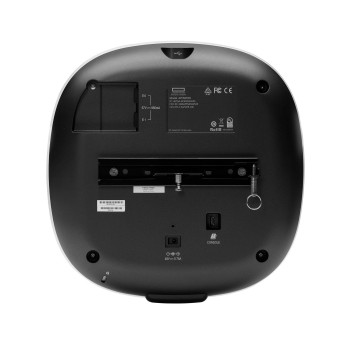

Hewlett Packard Enterprise JZ343A Aruba Ap-535 Eg Taa 3550 JZ343A

The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.

The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.

Antenna



Antenna direction type



Omni-directional


Antenna features



Integrated antenna


Antenna gain level (max)



5.4 dBi


Antenna type



Internal


Antennas quantity



4


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


Placement



Ceiling, Wall


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Auto MDI/MDI-X



Yes


Ethernet LAN data rates



100, 1000, 2500, 5000


Maximum data transfer rate



3550 Mbit/s


Maximum data transfer rate (2.4 GHz)



1148 Mbit/s


Maximum data transfer rate (5 GHz)



2402 Mbit/s


MIMO



Yes


Modulation



16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z


Spread spectrum method



DSSS, OFDM


Operational conditions



Operating relative humidity (H-H)



5 - 93 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 93 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


USB 2.0 ports quantity



1


USB connector type



USB Type-A


Power



Power consumption (max)



23.3 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



24 cm


Product Height



5.7 cm


Product Width



24 cm


Security



Security algorithms



WMM, WPA, WPA2


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
