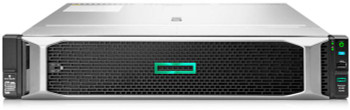

Hewlett Packard Enterprise P19562-B21 Proliant Dl180 Gen10 Server P19562-B21

Is maximizing your business reach and goal a challenge you are facing because your IT is not keeping pace with your data growth? The secure HPE ProLiant DL180 Gen10 server delivers on scalability, performance, and reliability thus making it the ideal platform for businesses ready to run on-premises and hybrid cloud applications. These businesses need the right mix of compute and storage, enabling them to achieve their most important goals.

What's new
- Eight (8) LFF drive chassis supporting SAS/SATA HDDs with max 32 TB storage
- Enhanced iLO 5 security features such as locking server hardware configuration, iLO security dashboard and workload performance advisor
- Available aggressively priced SMB offer models regionally released as �Smart Buy Express� in the U.S. and Canada, �Top Value� in Europe, and �Intelligent Buy� in Asia Pacific.

Features

Dense Storage at Optimal Performance for Web Infrastructure and Service Providers
- The flexible design provides choice of options and ability to scale. It is configured to meet the new standard of growing data center needs. The server supports Intel� Xeon� Scalable Processor series, up to eight cores (maximum 24) with 16 DDR4 2666 MHz (256 GB maximum).
- Two PCIe 3.0 slots and HPE iLO 5, UEFI and legacy boot mode, along with the standard HPE Dynamic Smart Array S100i. You have a choice of HPE Flexible Smart Array or HPE Smart HBA controllers for performance or additional features.
- 500W multi-output, up to 94% efficiency (Titanium), Flexible Slot PS; Standard 3-3-3 warranty; HPE Secure Encryption.

Comprehensive and Cost-effective Management
- HPE ProLiant DL180 Gen10 server offers comprehensive firmware management with HPE iLO5 that includes install sets created by Smart Update Manager (SUM). It has the ability to create multiple rollback sets and ability to view and delete scheduled jobs at no additional licensing cost.
- Scalable and reliable model to run multi-workload for better business performance and growing Data center needs. Cost optimization, reliability and expandability for cloud and virtualization requirements. Setting security standards making it the most secure Industry standard server portfolio.

Design



Chassis type



Rack (2U)


Product colour



Black, Silver


Rack mounting



Yes


Expansion slots



PCI Express slots version



3.0


Graphics



On-board graphics card



Yes


Logistics data



Harmonized System (HS) code



84714100


Memory



ECC



Yes


Internal memory



16 GB


Internal memory type



DDR4-SDRAM


Maximum internal memory



1 TB


Memory clock speed



2933 MHz


Memory slots



16x DIMM


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Performance



Remote administration



iLO 5 ASIC


Trusted Platform Module (TPM)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


VGA (D-Sub) ports quantity



1


Power



Power supply



500 Watt


Redundant power supply (RPS) support



Yes


Processor



Embedded options available



No


Execute Disable Bit



Yes


Maximum internal memory supported by processor



1 TB


Maximum number of PCI Express lanes



48


Maximum number of SMP processors



2


Memory clock speeds supported by processor



2133


Memory types supported by processor



DDR4-SDRAM


Motherboard chipset



Intel C622


Number of processors installed



1


Processor boost frequency



1.9 GHz


Processor cache



8.25 MB


Processor cache type



L3


Processor codename



Cascade Lake


Processor cores



6


Processor family



Intel Xeon Bronze


Processor frequency



1.9 GHz


Processor generation



2nd Generation Intel� Xeon� Scalable


Processor lithography



14 nm


Processor manufacturer



Intel


Processor model



3204


Processor operating modes



64-bit


Processor package size



76.0 x 56.5 mm


Processor socket



LGA 3647 (Socket P)


Processor threads



6


Scalability



2S


Supported instruction sets



AVX-512


Tcase



77 �C


Thermal Design Power (TDP)



85 Watt


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Trusted Execution Technology



Yes


Intel TSX-NI



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Processor ARK ID



193381


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



63.47 cm


Product Height



8.73 cm


Product Width



44.54 cm


Software



Operating system installed



No


Storage



HDD interface



Serial ATA


Hot-Plug support



Yes


Maximum storage capacity



144 TB


Number of HDDs supported



8


Optical drive type



N


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported HDD sizes



3.5


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
