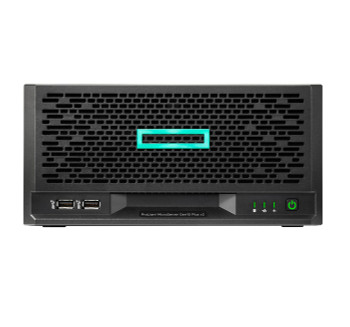

Hewlett Packard Enterprise P54654-421 Proliant Microserver Gen10+ P54654-421

Are you a small office, home office, or small business with branch offices looking to build a customized solution for your office?

The HPE ProLiant MicroServer Gen10 Plus v2 server delivers an affordable compact yet powerful entry-level server that you can customize for on-premises or for hybrid cloud possibilities. It has the same compact form factor as the previous version and can be placed flat or vertically depending on your space. Intel� Xeon� E Processor and Intel� Pentium� Gold Processor Series build compute performance as well as security and remote management into the server with HPE iLO Silicon Root of Trust from HPE iLO. Along with other enhancements such as 4 x 1GbE onboard NICs and USB 3.2 Type-A Gen2, there is nothing micro about the HPE ProLiant MicroServer Gen10 Plus v2 server.

Features

More Micro and Versatile, Yet More Powerful
- The HPE ProLiant MicroServer Gen10 Plus v2 server measures 4.68 in (11.89 cm) and can be placed either horizontally or vertically to fit different customer workspaces.
- Powered by up to four cores in the Intel� Xeon� E Processor and up to 64 GB of 3200 MT/s DDR4 ECC UDIMM, it delivers better performance for small business applications.
- HPE iLO 5 standard and essential functionality (optional), remote monitoring, restore, and maintenance are now available.1 It is supported by installing an optional iLO Enablement kit, which includes an HPE iLO dedicated port. HPE InfoSight and HPE OneView are also supported.
- Four embedded network ports provide the networking needs of small business customers. Optional 1GbE and 10GbE BASE-T and SFP+ standup option cards are supported for those who require more.

Security Innovations
- The HPE ProLiant MicroServer Gen10 Plus server v2 server is one of our industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with Silicon Root of Trust.
- Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

Industry-Leading Services and Ease of Deployment
- The HPE ProLiant MicroServer Gen10 Plus v2 server comes with an available complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping you realize agility and stability.
- HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Professional Services understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multi-vendor coverage.
- HPE IT investment solutions help you transform into a digital business with IT economics that aligns with your business goals.
- Make server deployment easy with custom RAID and setup with HPE Intelligent Provisioning and auto-intelligent RAID with HPE Rapid Setup.

Design



Chassis type



Ultra Micro Tower


Memory



ECC



Yes


Internal memory



16 GB


Internal memory type



DDR4-SDRAM


Maximum internal memory



64 GB


Memory clock speed



3200 MHz


Memory layout (slots x size)



1 x 16 GB


Memory slots



2x DIMM


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Intel� I350-AM4


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Performance



Remote administration



iLO 5 ASIC


Ports & interfaces



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



4


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Power



Power supply



180 Watt


Redundant power supply (RPS) support



No


Processor



Execute Disable Bit



Yes


Idle States



Yes


Motherboard chipset



Intel C252


Number of processors installed



1


Processor boost frequency



4.5 GHz


Processor cache



8 MB


Processor cores



4


Processor family



Intel� Xeon�


Processor frequency



2.8 GHz


Processor manufacturer



Intel


Processor model



E-2314


Processor special features



CPU configuration (max)



1


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Software Guard Extensions (Intel SGX)



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



24.5 cm


Product Height



11.89 cm


Product Width



24.5 cm


Software



Compatible operating systems



Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V Microsoft Windows Server 2022: Essentials, Standard, Datacenter Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM) VMware vSphere: 7.0 U3


Operating system installed



No


Storage



HDD capacity



1 TB


HDD interface



SATA


HDD size



3.5 "


HDD speed



7200 RPM


Hot-Plug support



No


Maximum storage capacity



16 TB


Number of HDDs installed



1


Number of HDDs supported



4


Optical drive type



N


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported HDD sizes



3.5


Total storage capacity



1 TB


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
