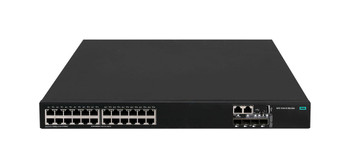

Hewlett Packard Enterprise R9L62A Flexnetwork 5140 Managed L3 R9L62A

The HPE FlexNetwork 5140 HI Switch Series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity with additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware-based MACsec for end-to-end encrypted security, and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This switch series also includes Smart MC at no additional cost and, when combined with Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.

Data transmission



MAC address table



32000 entries


Packet buffer memory



4 MB


Switching capacity



336 Gbit/s


Throughput



180 Mpps


Design



Form factor



1U


Rack mounting



Yes


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Network



10G support



Yes


Networking standards



IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Flash memory



512 MB


Internal memory



2048 MB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Installed SFP+ modules quantity



4


Power



AC input voltage



100 - 240 V


DC input voltage



48 - 60 V


Power consumption (typical)



96 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



36 cm


Product Height



4.37 cm


Product Width



44 cm


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
