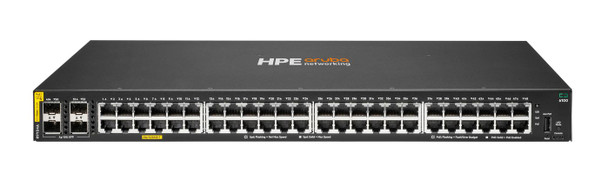

Hewlett Packard Enterprise R9Y04A 6100 48G Managed L2 Gigabit R9Y04A

The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.

Data transmission



Switching capacity



176 Gbit/s


Throughput



98.6 Mpps


Design



Form factor



1U


Rack mounting



Yes


Management features



Switch layer



L2


Switch type



Managed


Network



10G support



Yes


Networking standards



IEEE 802.3af, IEEE 802.3at


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Built-in processor



Yes


Flash memory



16 MB


Internal memory



4096 MB


Memory type



DDR3-SDRAM


Processor frequency



1016 MHz


Processor model



ARM Cortex-A9


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Installed SFP+ modules quantity



4


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



49.7 Watt


Total Power over Ethernet (PoE) budget



740 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
