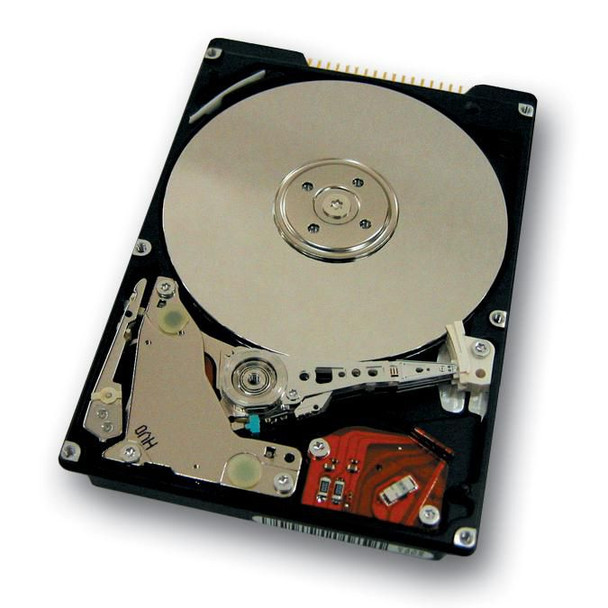

Hitachi HTS548040M9AT00-RFB IBM TP 40GB HDD G40/G41 5400 HTS548040M9AT00-RFB

Driving technology for today�s mobile hard disk drives
The Hitachi Travelstar 5K80 series is a 9.5mm high, 5400 RPM, 2.5-inch mobile hard disk drive ideal for today�s data-inten-sive business needs. The Travelstar 5K80 brings a new generation of 5400 RPM
mobile solutions to the long legacy of the Travelstar family of hard disk drives.

This next generation of mobile hard disk drives provides a design which combines years of research and development with award-winning technology including; Antiferomagnetically-coupled (AFC) tech-
nology �pixie dust�, Giant Magnetoresistive (GMR) heads, Fluid Dynamic Bearing (FDB) motor technology, Partial Response Maximum Likelihood (PRML) digital channel, head load/unload technology, Enhanced Adaptive Battery Life Extender TM (ABLE) 3.0, and an ATA/100 interface. With this design, the Travelstar 5K80 provides the storage capacity, performance, power management, quality and acoustics required by demanding computing/application requirements.

The new Travelstar 5K80 reaches areal densities of up to 70Gbits/ per square inch written on each disk. This feat was achieved by adding another layer of �Pixie Dust�- or in more technical terms, another ruthenium/magnetic layer to create a five-layer sandwich called laminated �Pixie Dust�. These additional layers bring even higher thermal stability to the media, allowing data recording at ultra-high densities while maintaining data-integrity.

Performance, quality and reliability
Designed to meet the demanding needs of today�s data-intensive requirements, the Travelstar 5K80 leverages proven technologies such as True Track Servo, which eases system integration, enhances hard disk drive reliability, and adds robustness against vibration and disk shift, Drive Fitness Test
TM (DFT), and S.M.A.R.T. (Self-Monitoring Analysis and Reporting) echnology which is designed to enable a hard drive to predict impending catastrophic failure. As a result of the award-winning combination of technology designed into the Hitachi Travelstar 5K80 series of hard disk drives,
they are suitable for demanding, high-capacity internet, digital audio and video editing, video streaming, and real-time multimedia applications - whether users are in the office or on the road.

Innovation. Capability.Commitment.
Three reasons why Hitachi Global Storage Technologies is positioned to inspire and lead the evolution of storage technologies: Hitachi quality, support, and service. The Hitachi Travelstar mobile hard disk drives share common field-proven components to provide manufacturers with superior quality hard drives backed by Hitachi warranty and technical support and services.

Features



Average latency



5.5 Millisecond


Average seek time



12 Millisecond


Full stroke seek time



23 Millisecond


HDD capacity



40 GB


HDD number of heads



2


HDD size



2.5 "


HDD speed



5400 RPM


Interface



Ultra-ATA/100


Start/stop cycles



300000


Storage drive buffer size



8 MB


Track to track seek time



2.5 Millisecond


Type



HDD


Operational conditions



Operating relative humidity (H-H)



8 - 90 %


Operating temperature (T-T)



5 - 55 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Package dimensions



Gross Weight (Package, kg)



1 kg


Power



Operating voltage



5 V


Power consumption (read)



2.5 Watt


Power consumption (standby)



0.25 Watt


Power consumption (write)



2.5 Watt


Product dimensions



Net Weight (Product, kg)



0.8 kg


Product Depth



10 cm


Product Height



0.95 cm


Product Width



7 cm


Vendor information



Brand Name


Hitachi


Warranty



1 Year(s)
