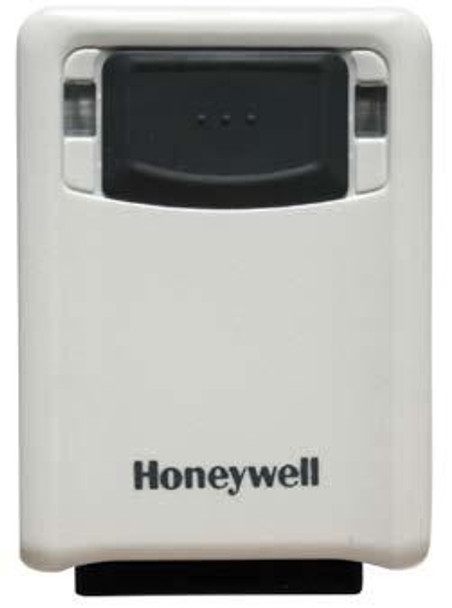

Honeywell 3320GHD-4 Vuquest 3320g. 2D. HD 3320GHD-4

The Honeywell Vuquest� 3320g compact area-imaging scanner
offers aggressive scanning of all 1D, PDF and 2D barcodes in a
lightweight, durable and portable form factor. The scanner�s sleek
and elegant design also blends seamlessly in retail environments.
Powered by Adaptus� Imaging Technology 6.0, the Vuquest 3320g scanner
delivers superior barcode scanning and digital image capture. Aggressive
reading of barcodes on highly reflective surfaces, such as mobile phone
screens, eliminates the need to purchase additional specialty hardware.
Designed with the customer in mind, the unobtrusive
illumination contained within the Vuquest 3320g scanner
reduces the annoying after-effects commonly associated
with the illumination used in imaging-based scanners.
The TotalFreedom� 2.0 second-generation development platform expands
scanner functionality by allowing decoding and formatting plug-ins to
be loaded directly onto the Vuquest 3320g scanner, enabling enterprises
to rapidly support proprietary or newly developed symbologies.
The ability to control the triggering of an external device
such as a beeper, photo eye or illumination via external I/O
capabilities allows the Vuquest 3320g scanner to enter new
markets once reserved for expensive industrial products.
With its small size, ergonomically friendly thumb-activated button
and clearly visible indicator LEDs, the Vuquest 3320g scanner offers
a dependable handheld or wearable scanning solution. The Vuquest
3320g scanner also offers universal mounting and robust presentation
mode scan performance, making the device an ideal fixed-mount
scanning solution for use in light industrial applications and kiosks.

Design



Product colour



Grey


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.2 kg


Performance



Product colour



Grey


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232, USB, Keyboard wedge


Power



Input voltage



5 V


Power consumption



450 mA


Power consumption (standby)



0.45 Watt


Power consumption (typical)



2.3 Watt


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



2.6 cm


Product Height



7.3 cm


Product Width



5.1 cm


Scanning



Light levels (direct sunlight)



0 - 100000 lx


Linear (1D) barcodes supported



PDF417


Pitch reading angle



-45 - 45 �


Scanner type



1D


Sensor type



Photo diode


Type



Fixed bar code reader


Yaw reading angle



-65 - 65 �


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Honeywell


Warranty



2 Year(s)
