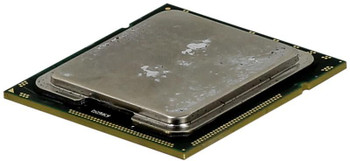

HP 536892-001-RFB EP E5506 2.13Ghz.4M.80W 536892-001-RFB

Options, accessories, services and support for all your HP and Compaq products.

Features



CPU configuration (max)



2


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



144 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



76 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.56 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.750 - 1.350 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



19.2 GB/s


Number of QPI links



2


Processor base frequency



2.13 GHz


Processor cache



4 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



2.13 GHz


Processor lithography



45 nm


Processor model



E5506


Processor operating modes



64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



4


System bus rate



4.8 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.750 - 1.350 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



0.4600000000000001 kg


Vendor information



Brand Name


HP


Warranty



1 Year(s)


Weight & dimensions



Processor package size



4.25 cm
