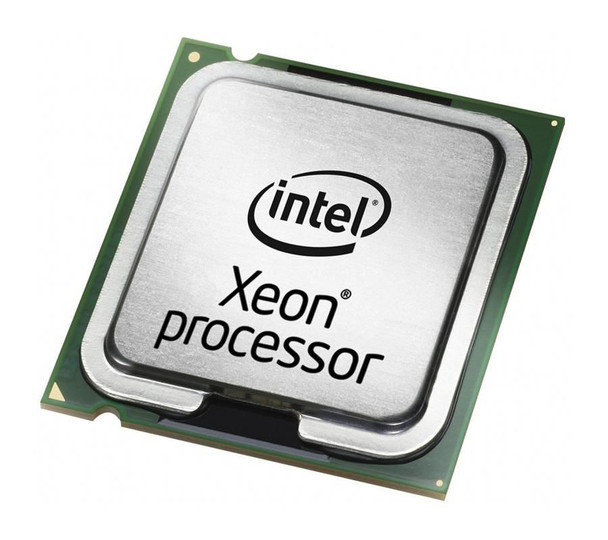

HP 604624-001 Lfd Qc X3430 2.40 8Mb/1333 Qc 604624-001

Intel Xeon processors represent a broad product line to meet a range of demanding performance and energy efficiency requirements for compute-intensive embedded, storage, and communications applications.eater flexibility and lower costs. Put the Intel Xeon processor's latest platform innovations to work to accomplish more than ever before.

Features



Embedded options available



Yes


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



1


Number of Processing Die Transistors



774 M


PCI Express configurations



1x16, 2x8, 4x4


PCI Express slots version



2.0


Processing Die size



296 mm²


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Memory



ECC



Yes


Memory channels



Dual-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



72.7 °C


Other features



Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.1 kg


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.65 - 1.4 V


Processor



Bus type



DMI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



21 GB/s


Processor base frequency



2.4 GHz


Processor boost frequency



2.8 GHz


Processor cache



8 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel® Xeon® 3000 Sequence


Processor frequency



2.4 GHz


Processor lithography



45 nm


Processor model



X3430


Processor operating modes



64-bit


Processor socket



LGA 1156 (Socket H)


Processor threads



4


Stepping



B1


System bus rate



2.5 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.65 - 1.4 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



No


Intel® Hyper Threading Technology (Intel® HT Technology)



No


Intel® Smart Cache



Yes


Intel® Turbo Boost Technology



Yes


Intel® vPro™ Platform Eligibility



No


Intel® vPro™ Technology



No


Product dimensions



Net Weight (Product, kg)



0.09 kg


Vendor information



Brand Name


HP


Warranty



6 Month(s)
