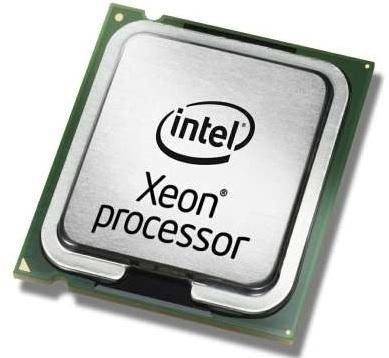

HP 614741-001-RFB W3680 3.33 12Mb/1333 6C 614741-001-RFB

The Intel� Xeon� processor 3000 sequence-based platforms unleash the computing power of Intel Xeon processors. The new 45 nm Quad and Dual-Core processors feature enhanced Intel� Core� microarchitecture that provides your business with exceptional performance and power efficiency at a very affordable cost.

These servers are ideal for small business owners looking for ways to grow business, manage operation more effectively and efficiently, and protect and secure one of their most important assets - information.

Intel� Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel� 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Enhanced Intel SpeedStep� Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep� Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep� Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel� VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel� Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Features



CPU configuration (max)



1


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Physical Address Extension (PAE)



Yes


Supported instruction sets



SSE4.2


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



24 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



67.9 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.8 kg


Power



Thermal Design Power (TDP)



130 Watt


VID Voltage Range



0.8 - 1.375 V


Processor



Box



No


Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



32 GB/s


Number of QPI links



1


Processor base frequency



3.33 GHz


Processor boost frequency



3.6 GHz


Processor cache



12 MB


Processor cache type



L3


Processor cores



6


Processor family



Intel� Xeon� 3000 Sequence


Processor frequency



3.33 GHz


Processor lithography



32 nm


Processor model



W3680


Processor operating modes



64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



12


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



130 Watt


VID Voltage Range



0.8 - 1.375 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Smart Cache



Yes


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


HP


Warranty



1 Year(s)
