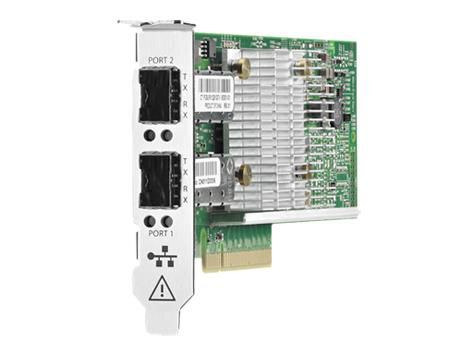

HP 652503-B21-RFB HP 530SFP+ 10Gb 2P Ethernet 652503-B21-RFB

Need a 10Gb Ethernet adapter that�s big on performance small on power? The HPE 530SFP+ is a dual-port 10 Gb Ethernet adapter in a PCIe 2.0 compliant form factor designed for select HPE ProLiant Gen9, Gen8 and Gen7 ML/DL/SL servers. Leveraging HPE�s market-proven architecture and software, the HPE 530SFP+ delivers full line-rate performance across all ports with low power consumption. Support for Hewlett Packard Enterprise Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

The HPE 530SFP supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ.

Features

Dual-port 10 Gb Ethernet Low Profile Adapter Designed for Greater Network Performance
- Ethernet transfer rate of 20 Gbps full duplex per port (40 Gbps aggregate) improves response times and alleviates bottlenecks in next generation data centers.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Ready for SR-IOV virtualization.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- TCP/IP Offload Engine (TOE) frees server CPU for other operations.

Power, Performance and Integration are key to this 10Gb Ethernet adapter
- Single-chip solution integrating PHY and MAC.
- Up to 40 Gb/s bi-directional near line rate throughput.
- Less than 8 watts total power dissipation.

Design



Chipset



Cavium 57810S


Component for



Server


Internal



Yes


Network



Jumbo frames support



Yes


Maximum data transfer rate



20000 Mbit/s


Networking standards



IEEE 802.1AX, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ad, IEEE 802.2x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP+


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


PCI version



2.0


Power



Power consumption (typical)



9 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



24.13 cm


Product Height



19.05 cm


Product Width



5.72 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


HP


Warranty



1 Year(s)
