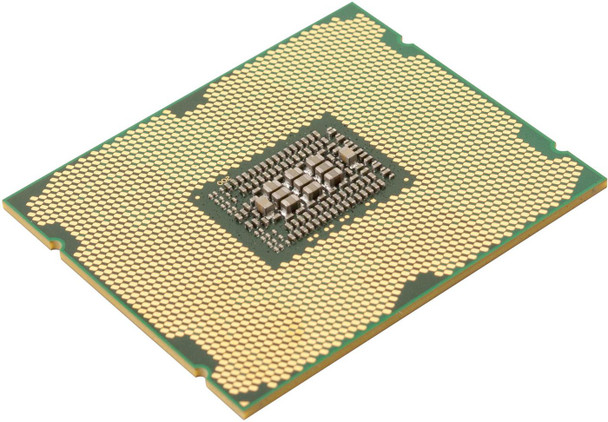

HP 683611-001-RFB Xeon E5-1650 Processor 3.2Ghz 683611-001-RFB

We are in a multi-year journey to turn HP around, and we have put in place a plan to restore HP to growth. We know where we need to go, and we're making progress.We continue to drive product innovation in our core markets, with a focus on cloud, security, and big data. We see big opportunities ahead, and we are well positioned to take advantage of these opportunities with our remarkable set of assets and strengths. We have the people, the plan, and the foundation in place to help us succeed on the next phase of the journey

Features



Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



40


PCI Express slots version



3.0


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



256 GB


Memory channels



Quad-channel


Memory clock speeds supported by processor



800, 1066, 1333, 1600


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



64 °C


Other features



Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Depth (package,cm)



4.5 cm


Gross Weight (Package, kg)



0.5 kg


Width (package,cm)



5.25 cm


Power



Thermal Design Power (TDP)



130 Watt


VID Voltage Range



0.60 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



51.2 GB/s


Number of QPI links



1


Processor base frequency



3.2 GHz


Processor boost frequency



3.8 GHz


Processor cache



12 MB


Processor cache type



L3


Processor cores



6


Processor family



Intel® Xeon® E5 Family


Processor frequency



3.2 GHz


Processor lithography



32 nm


Processor model



E5-1650


Processor operating modes



64-bit


Processor socket



LGA 2011 (Socket R)


Processor threads



12


Thermal Design Power (TDP)



130 Watt


VID Voltage Range



0.60 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Flex Memory Access



No


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



Yes


Intel® Identity Protection Technology (Intel® IPT)



No


Intel® Smart Cache



Yes


Intel® Turbo Boost Technology



2.0


Intel® vPro™ Platform Eligibility



Yes


Intel® vPro™ Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.4 kg


Vendor information



Brand Name


HP


Warranty



1 Year(s)
