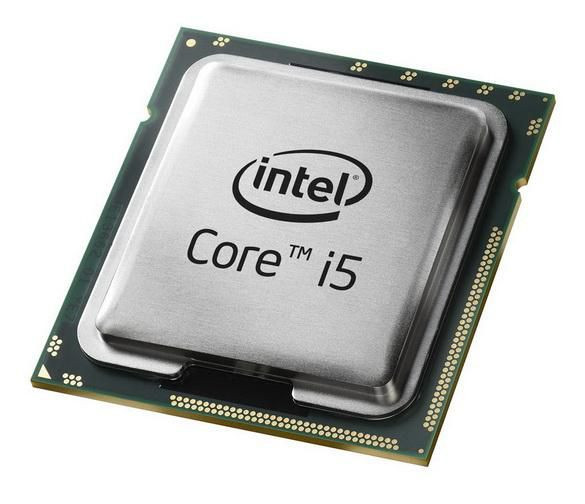

HP 695077-001 I5 3470S 2.9Ghz 65W 6Mb E 1 695077-001

The most popular members of our Intel� Core� processor family, the Intel� Core� i5 processors deliver amazing performance with stunning visuals on your Ultrabook� or All-in-One or Standard PC, whether it�s a laptop or desktop. The Intel Core i5 processors include many technologies that deliver incredible PC and visual experiences for all of your favorite activities�whether you�re creating, sharing, exploring, or gaming.

Intel� Turbo Boost Technology 2.0 intelligently and automatically boosts processor speed just when you need it for performance that adapts to you�it�s that smart.

Intel� Quick Sync Video, part of our built-in visuals, integrates video conversion hardware into the processor to accelerate performance of editing, burning, and sharing your videos in a snap. Now your videos are waiting for you, not the other way around.

Intel� HD Graphics, in the 3rd generation of Intel� Core� processors, integrates the graphics engine and media processing right on the chip to deliver life-like graphics for a better gaming experience. Intel HD Graphics delivers up to 3X performance over previous-generation Intel HD Graphics3,4,5 �with additional headroom for tomorrow�s games. Best of all, no additional hardware is required.

Features



Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


PCI Express configurations



1x16, 2x8, 1x8+2x4


PCI Express slots version



3.0


Supported instruction sets



SSE4.1, SSE4.2


Thermal Monitoring Technologies



Yes


Thermal solution specification



PCG 2011C


Graphics



Number of displays supported (on-board graphics)



3


On-board graphics card



Yes


On-board graphics card base frequency



650 MHz


On-board graphics card dynamic frequency (max)



1100 MHz


On-board graphics card model



Intel� HD Graphics 2500


Memory



ECC



No


Maximum internal memory supported by processor



32 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1333, 1600


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



69.1 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.2 kg


Power



Thermal Design Power (TDP)



65 Watt


Processor



Box



No


Memory bandwidth supported by processor (max)



25.6 GB/s


Processor base frequency



2.9 GHz


Processor boost frequency



3.6 GHz


Processor cache



6 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Core� i5


Processor frequency



2.9 GHz


Processor generation



3rd gen Intel� Core� i5


Processor lithography



22 nm


Processor model



i5-3470S


Processor operating modes



64-bit


Processor socket



LGA 1155 (Socket H2)


Processor threads



4


Stepping



N0


System bus rate



5 GT/s


Thermal Design Power (TDP)



65 Watt


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel FDI Technology



Yes


Intel Trusted Execution Technology



Yes


Intel TSX-NI



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� Anti-Theft Technology (Intel� AT)



Yes


Intel� Clear Video HD Technology (Intel� CVT HD)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Identity Protection Technology (Intel� IPT)



Yes


Intel� Insider�



Yes


Intel� InTru� 3D Technology



Yes


Intel� Quick Sync Video Technology



Yes


Intel� Secure Key



Yes


Intel� Turbo Boost Technology



2.0


Intel� vPro� Platform Eligibility



Yes


Intel� vPro� Technology



Yes


Intel� Wireless Display (Intel� WiDi)



Yes


Product dimensions



Net Weight (Product, kg)



0.1 kg


Vendor information



Brand Name


HP


Warranty



6 Month(s)
