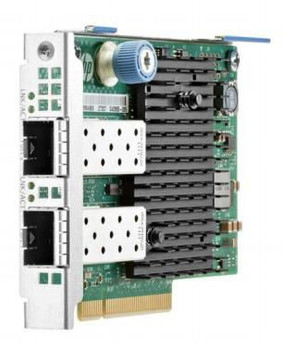

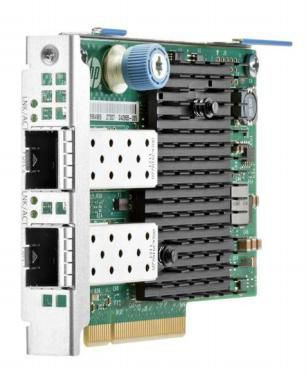

HP 727054-B21-RFB 562FLR-SFP+ 10Gb 2P Ethernet 727054-B21-RFB

Do you require SDN features, low-latency and high-bandwidth in your data center?

The HPE Ethernet 10Gb 2-port 562FLR-SFP+ adapter offers the latest SDN features in a FlexibleLOM form factor. The HPE 562FLR-SFP+ is a feature rich, low power dual port PCIe v3.0 x8 lane adapter designed for use in HPE ProLiant Gen9 Rack and Density Optimized servers.

Features

Outstanding I/O Performance in Virtualized Server Environments
- Reduces I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near-native performance and VM scalability.
- The single-root I/O virtualization (SR-IOV) allows an I/O device to be shared by multiple Virtual Machines (VMs), without losing runtime performance.
- Dual-port PCIe 3.0,x8 lane 10Gb, designed for HPE ProLiant Gen9 Rack/Tower and Density.
- Data Plane Developer Kit (DPDK) optimized for efficient packet processing.

Network virtualization is the Next Big Trend in Creating an Agile Data Center
- Provides stateless offloads that preserve application performance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores.
- VXLAN and NVGRE Offloads for stateless offloads preserves application performance for overlay networks and makes it possible to distribute network traffic across CPU cores.
- Excellent small packet performance for network appliances and Network Function Virtualization (NFV).
- Optimized servers providing up to 40Gb/s bi-directional near line rate throughput.

Design



Internal



Yes


Network



Auto-negotiation



Yes


Jumbo frames



9500


Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3q, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 55 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-65 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP+


Fiber ports quantity



2


Host interface



PCI Express


Interface



Ethernet / Fiber


PCI version



3.0


Power



Power consumption (typical)



12 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



19.05 cm


Product Height



5.71 cm


Product Width



24.13 cm


Vendor information



Brand Name


HP


Warranty



1 Year(s)
