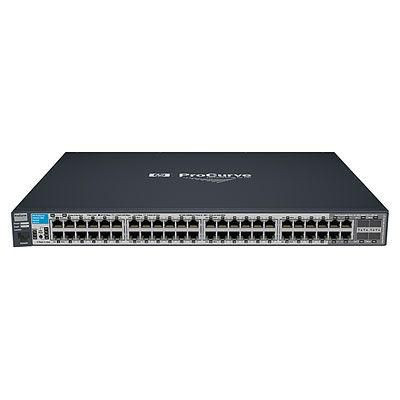

HP J9147-69001-RFB PROCURVE 2910AL-48G SWITCH J9147-69001-RFB

The HP 2910 al Switch Series consists of four switches: the HP 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the HP 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.

Quality of Service (QoS)

� Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues


Connectivity

� 10 Gbps Ethernet connectivity: up to four optional and flexible 10-Gigabit ports (CX4 and/or SFP+), with optional interconnect kit for short-distance connectivity


Performance

� High-performance architecture: 128 Gbps switching fabric with up to 95 Mpps (24-port switches) and 176 Gbps switching fabric with up to 131 Mpps (48-port switches)


Resiliency and high availability

� IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w


Manageability

� RMON, XRMON, and sFlow: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events


Layer 2 switching

� VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously


Layer 3 routing

� Static IP routing: provides manually configured routing; includes ECMP capability

Data transmission



Latency (1 Gbps)



2.9 �s


Latency (10 Gbps)



1.3 �s


MAC address table



16000 entries


Packet buffer memory



6 MB


Switching capacity



176 Gbit/s


Throughput



131 Mpps


Design



Form factor



1U


Rack mounting



Yes


Stackable



Yes


Management features



MIB support



MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Port mirroring



Yes


Rate limiting



Yes


Routing entries



2000


Spanning tree protocol



Yes


Operational conditions



Heat dissipation



356 BTU/h


Operating altitude



0 - 3000 m


Operating temperature (T-T)



0 - 55 �C


Package dimensions



Gross Weight (Package, kg)



1.01 kg


Performance



Built-in processor



Yes


Flash memory



4 MB


Internal memory



512 MB


Processor frequency



515 MHz


Processor model



ARM11


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Combo SFP ports quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



2.1 A


Power consumption (typical)



105 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



36.58 cm


Product Height



4.4 cm


Product Width



44.25 cm


Security



Access Control List (ACL)



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


HP


Warranty



1 Year(s)
