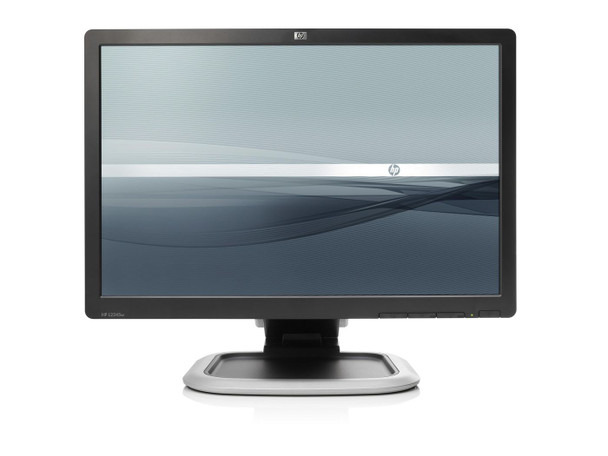

HP RP000342557 L2245W 22in WIDESCREEN LCD RP000342557

The large-screen HP 2245w 22-inch Widescreen LCD Monitor offers advanced performance and user comfort features in an elegant extra-large 22-inch diagonal wide-aspect screen designed for users who appreciate widescreen viewing, wherever they work.

Features

- Enjoy high resolution viewing with a 1000:1 contrast ratio, sharp resolutions to 1680 x 1050, and fast 5 ms response time. Use the built-in USB hub to quickly connect to peripherals. The digital input with HDCP supports encrypted data content.

- Enable comfortable viewing with wide 160-degree viewing angles and adjustable swivel, tilt, and pivot settings. The low-point height-adjustment setting lets you position the monitor’s lower bezel flush with the desk.

- Help protect against image retention and reduce energy costs with HP Display LiteSaver, which allows prescheduled Sleep mode. Adjust monitor settings and enable theft deterrence through the connected PC with HP Display Assistant.

- Customize the display settings with a wide range of icon-based on-screen display (OSD) controls. Disable the green power LED to minimize distractions, and the on/off button to prevent users from turning off the monitor.

Design



Certification



TCO 03


Energy Star certified



Yes


Product colour



Black


Display



Contrast ratio (typical)



1000:1


Display brightness (typical)



300 cd/m²


Display diagonal



22 "


Display number of colours



16.78 million colours


Display resolution



1680 x 1050 Pixels


Display scanning frequency



Horizontal frequency: 24-83 kHz, Vertical frequency: 50-76 Hz


Horizontal scan range



24 - 83 kHz


Pixel pitch



0.282 x 0.282 mm


Response time



5 Millisecond


Surface treatment



Wide-Aspect Active Matrix TFT (thin film transistor)


Touchscreen



No


Vertical scan range



50 - 76 Hz


Viewable size diagonal



55.9 cm


Viewable size, horizontal



47.8 cm


Viewable size, vertical



30 cm


Viewing angle, horizontal



160 °


Viewing angle, vertical



160 °


Ergonomics



Display tilt and swivel range



Tilt range: -5° to + 35° vertical tilt, swivel range: -45° to +45°, height adjust: 130 mm, pivot rotation, attachable base


Ergonomics



The monitor meets the ergonomic requirement of EN-ISO 13406-2 for flat panel displays.


Height adjustment



13 cm


Panel mounting interface



100 x 100


Pivot



Yes


Plug and Play



Yes


Operational conditions



Non-operating relative humidity (non-condensing)



5 - 90 %


Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 35 °C


Relative humidity



20 - 80 %


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



20 - 60 °C


Other features



Audio included



No audio included at platform level


Audio system



No audio included at platform level


Dimension note (imperial)



With stand


Dimension note (metric)



With stand


Dimensions (W x D x H) (imperial)



20.27 x 11.86 x 14.6 "


Display video input type connector



15-pin D-sub analog VGA


Maximum analog resolution



1680 x 1050 Pixels


Maximum resolution



1680 x 1050 Pixels


Monitor sync input signal



One 15-pin mini D-sub analog VGA (VGA cable included), one DVI-D, HDCP support


Package dimensions (WxDxH)



612 x 227 x 417 mm


Power requirements



100 - 240 VAC, 50 - 60 Hz


Product dimensions (with stand, imperial)



20.27 x 11.86 x 14.6 "


Product dimensions (without stand, imperial)



19.72 x 2.36 x 13.59 "


Rear ports



2 USB 2.0


Rear ports note



2 USB 2.0


Security features



Kensington Lock-ready


Signal input



Analog/Digital


User controls



Power on/off; 3-button OSD (menu, plus, minus) Brightness, contrast, positioning, color temperature (6500k, 9300k, custom), individual color control, serial number, display, clock, clock phase, monitor management, factory reset


Video Dot Rate



165 MHz


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Ports & interfaces



DVI-D ports quantity



1


I/O ports



USB 2.0 Hub: self-powered, two ports (cable included) 15-pin mini D-sub analog VGA connector, DVI-D connector


VGA (D-Sub) ports quantity



1


Power



Power consumption (off)



1 Watt


Power consumption (standby)



2 Watt


Power consumption (typical)



65 Watt


Product dimensions



Net Weight (Product, kg)



0.38 kg


Product Depth



6 cm


Product Height



34.5 cm


Product Width



51.4 cm


Sustainability



Sustainability certificates



ENERGY STAR


Technical details



Sustainability certificates



ENERGY STAR


Thin Client



Processor frequency



0.4 GHz


Vendor information



Brand Name


HP


Warranty



1 Year(s)


Weight & dimensions



Depth (with stand)



30.1 cm


Depth (without stand)



6 cm


Height (with stand)



50 cm


Height (without stand)



34.5 cm


Weight (without stand)



7.7 kg


Width (with stand)



51.4 cm


Width (without stand)



51.4 cm
