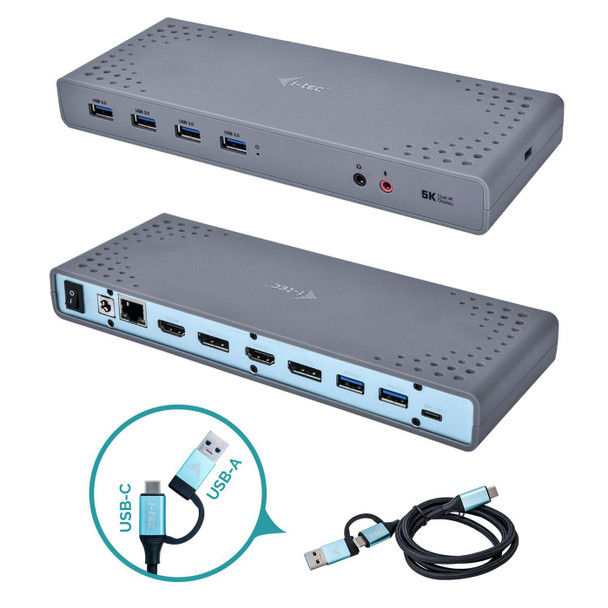

i-tec CADUAL4KDOCK I-TEC USB-C/A DOCKING STATION CADUAL4KDOCK

This docking station is designed to be used with any laptop, tablet or smartphone regardless of type, brand or operating system. All you need is for your laptop/tablet/phone to have a free Thunderbolt 3 or any USB port (minimum of USB 3.0 recommended)

Do you enjoy detailed graphics with high resolution? If so, then this station can allow you to connect to up to two external monitors or TVs with up to 4K resolution! And of course, you can enjoy truly smooth video thanks to high refresh rate of 60 Hz.

Printer? Keyboard? Mouse? External hard drive or flash drive? Charging cable for your phone? You can connect all your devices to the docking station quickly and easily. In addition, you can connect to the Internet thanks a LAN port, eliminating any worries with variable speed and quality of Wi-Fi networks.

A clear table is the backbone of any modern workspace. If your monitor supports the VESA mounting standard, you can easily install the docking station behind your monitor using an optional frame accessory (order code: VESADOCK1). Cables and other devices occupying space on the table will be a thing of the past.

Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces (cables included).

The unit is equipped with four graphic outputs, 2x HDMI and 2x DisplayPort, although a maximum of two monitors can be supported simultaneously. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz) is supported when a single monitor is connected via two DisplayPort cables.

6x USB-A 3.0 ports (USB 3.0 / 2.0 compatible) make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high speed internet connection, supporting 10 / 100 / 1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on / off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

This docking station is suitable for use with Macbook Pro 2016, Macbook 2015, Chromebook Pixel 2015, Acer Switch Alpha 12, Acer Switch Alpha 13, Dell XPS 13, HP Elitebook Folio G1 and ASUS UX390UAK, as well as other devices with USB-C connectivity.

* 5K resolution is supported only by Windows

Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Other features



USB data transfer rates



5000


Package dimensions



Depth (package,cm)



31.4 cm


Gross Weight (Package, kg)



0.99 kg


Height (package,cm)



6 cm


Width (package,cm)



14.4 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-A to USB Type-C


Quick start guide



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Cable lock slot



Yes


Card reader integrated



No


Housing material



Plastic


LED indicators



Y, Yes


Maximum digital resolution



5120 x 2880 Pixels


Number of displays supported



2


On/off switch



Yes


Product colour



Black, Turquoise


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPorts quantity



2


HDMI ports quantity



2


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



6


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB connector type



USB Type-A, USB Type-C


Power



AC input voltage



100 - 240 V


Input current



2 A


Output current



2 A


Output voltage



20 V


Power cable length



1.2 m


Power plug type



Type C


Power source type



AC


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



23.3 cm


Product Height



2.7 cm


Product Width



8.8 cm


Software



Linux operating systems supported



Ubuntu 14.04, Ubuntu 16.04, Ubuntu 17.10, Ubuntu 18.04 LTS


Mac compatibility



Yes


Mac operating systems supported



Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Other operating systems supported



Android


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Harmonized System (HS) code



84733020


Vendor information



Brand Name


i-tec


Warranty



1 Year(s)
