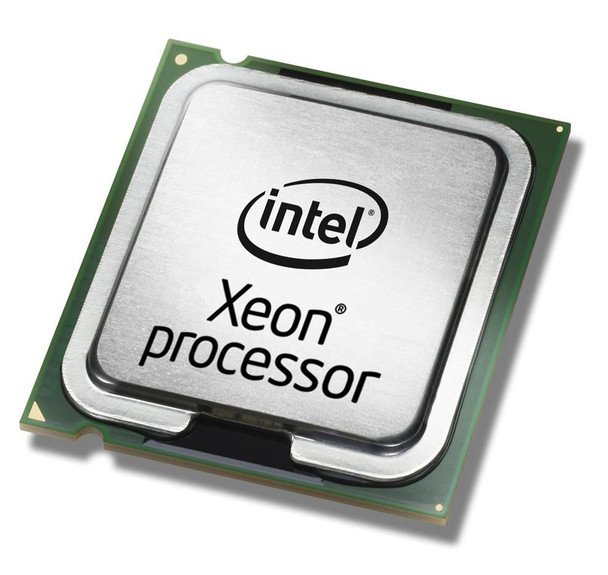

IBM 00D2582-RFB Xeon 6C Processor Model 00D2582-RFB

Information technology professionals rely on IBM quality to ensure maximum productivity. As the power of applications, processors, memory adapters and storage devices increases, high-end computer users are seeking ways to optimize their system performance. IBM provides leading solutions, adding new levels of performance, availability, flexibility, and management.

Features



CPU configuration (max)



2


Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



24


PCI Express slots version



3.0


Scalability



S2S


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



375 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066


Memory types supported by processor



DDR3-SDRAM


Other features



Compatibility



IBM System x3300 M4 (7382)


Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.6 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



25 GB/s


Number of QPI links



1


Processor base frequency



2.2 GHz


Processor cache



10 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel® Xeon® E5 Family


Processor frequency



2.2 GHz


Processor front side bus



1066 MHz


Processor lithography



32 nm


Processor model



E5-2407


Processor operating modes



64-bit


Processor socket



LGA 1356 (Socket B2)


Processor threads



4


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.6 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Flex Memory Access



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



No


Intel® Smart Cache



Yes


Intel® Turbo Boost Technology



No


Intel® vPro™ Platform Eligibility



Yes


Intel® vPro™ Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.3 kg


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
