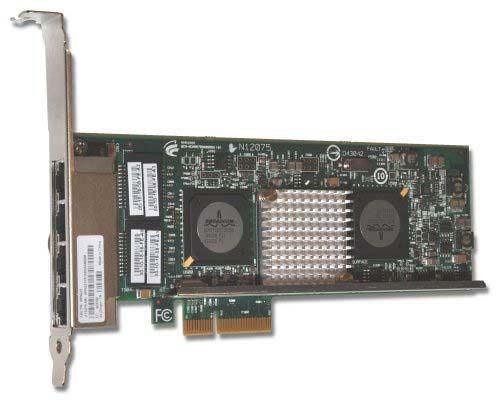

IBM 49Y4220-RFB NETXTREME II 1000 EXP QUADPORT 49Y4220-RFB

The NetXtreme II 1000 Express Quad Port Ethernet Adapter is the latest Ethernet switching option for the IBM®System x
- Half-length form factor: Ideal for space limited server environments
- TCP/IP Offload Engine: Offers hardware acceleration for mission-critical applications
- Support for iSCSI Hardware Offload: Enables I/O convergence by allowing access to storage targets over the same physical IP network

The NetXtreme II 1000 Express Quad Port Ethernet Adapter is a high-performance PCI Express (PCIe), quad-port, copper, 1 Gigabit Ethernet network adapter supporting both NIC/TOE and iSCSI over a single network connection.

The NetXtreme II 1000 Express Quad Port Ethernet Adapter:- Is PCI Express 2.0 Gen 2 compatible
- Comes wired for PCI Express x4
- Offers four 10/100/1000 copper ports with RJ45 for Cat 5E/6 cabling
- Is based on Broadcom NetXtreme II 5709C Dual Port MAC/PHY controller technology
- Is a standard PCI Express half-length card with a low-profile form factor
- Includes both half- and full-height brackets to support a wide range of System x servers
- Supports TCP/IP Offload Engine (TOE) for hardware acceleration
- Supports iSCSI Hardware Offload to allow access to storage over the same physical IP network

Key features:- PCI Express 2.0 Gen 2 compatible
- Wired for PCI Express x4
- 4 10/100/1000 copper ports with RJ45 for Cat 5E/6 cabling
- Support for Wake on LAN® for first two ports (port 0 and port 1)
- Remote boot support with PXE as the default mode
- Support for TCP/IP Offload Engine (TOE) for hardware acceleration
- Support for iSCSI Hardware Offload over IP network

Design



Internal



Yes


Network



Ethernet LAN



Yes


Maximum data transfer rate



1000 Mbit/s


Other features



Compliance industry standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3ab


I/O ports



1 x RJ-45


Package dimensions



Gross Weight (Package, kg)



0.8 kg


Ports & interfaces



Connectivity technology



Wired


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.75 kg


Product Depth



26.2 cm


Product Height



2 cm


Product Width



29.4 cm


System requirements



Compatible operating systems



Windows Server 2003/2008 Linux VMware


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
