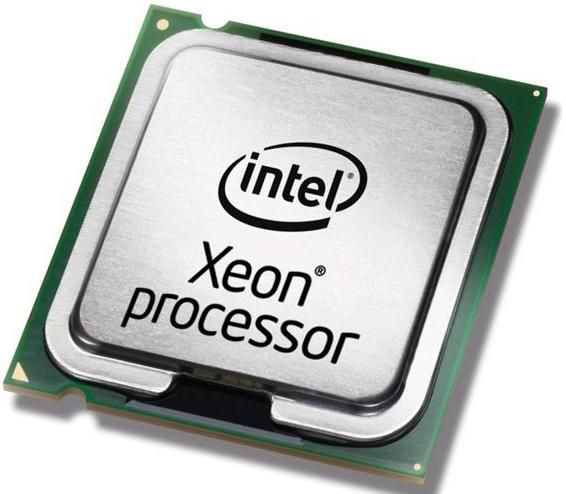

IBM 81Y5187-RFB IX Processor E5-2660 20M Cache 81Y5187-RFB

Intel Turbo Boost Technology
Intel Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don�t.

Intel vPro Technology
Intel vPro Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security:- Threat management, including protection from rootkits, viruses, and malware;
- Identity and web site access point protection;
- Confidential personal and business data protection;
- Remote and local monitoring, remediation, and repair of PCs and workstations.

Intel Hyper-Threading Technology
Intel Hyper-Threading Technology delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel Virtualization Technology (VT-x)
Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel Virtualization Technology for Directed I/O
Intel Virtualization Technology for Directed I/O continues from the existing support for IA-32 and Itanium processor virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel Trusted Execution Technology
Intel Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

AES New Instructions
Advanced Encryption Standard New Instructions are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.

Intel 64
Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep Technology
Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel Demand Based Switching
Intel Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep Technology in the server marketplace.

Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

Intel Flex Memory Access
Intel Flex Memory Access facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel VT-x with Extended Page Tables
Intel VT-x with Extended Page Tables, also known as Second Level Address Translation, provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Features



CPU configuration (max)



2


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


PCI Express slots version



3.0


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



750 GB


Memory channels



Quad-channel


Memory clock speeds supported by processor



800, 1066, 1333, 1600


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



72 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.6 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


CPU multiplier (bus/core ratio)



30


Memory bandwidth supported by processor (max)



51.2 GB/s


Number of QPI links



2


Processor base frequency



2.2 GHz


Processor boost frequency



3 GHz


Processor cores



8


Processor family



Intel� Xeon� E5 Family


Processor frequency



2.2 GHz


Processor lithography



32 nm


Processor model



E5-2660


Processor operating modes



64-bit


Processor socket



LGA 2011 (Socket R)


Processor threads



16


System bus rate



8 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.6 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Turbo Boost Technology



2.0


Intel� vPro� Platform Eligibility



Yes


Intel� vPro� Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


IBM


Warranty



1 Year(s)


Weight & dimensions



Processor package size



5.25 cm
