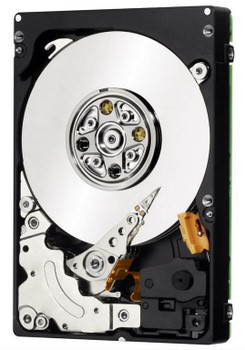

IBM 81Y9786-RFB 500GB 6Gbps NL 3.5" SATA SFF 81Y9786-RFB

As the newest additions to the IBM System x® family of 2.5-inch and 3.5-inch SATA and SAS drives, the 7,200 rpm, 10,000 rpm, and 15,000 rpm 6 Gbps 2.5-inch drives and the 7,200 rpm 6 Gbps 3.5-inch hot-swap and simple-swap NL SATA and hot-swap NL SAS HDDs offer the highest performance options and provide a wider selection of choices to satisfy a wide range of applications. These new drives are positioned at the top of the IBM SATA and SAS NL HDD line.

The new 7,200 rpm 500 GB, 1 TB, 2 TB, and 3 TB 6 Gbps NL SAS and SATA HDDS provide 3.5-inch form factor options. The SAS and SATA drives are available in hot-swap and simple-swap versions, while the 3 TB SAS is available in hot-swap only configuration.

Key features and benefits include:
- 7,200 rpm, 10,000 rpm, and 15,000 rpm 2.5-inch SAS drives are RoHS compliant and Protection Information (PI) enabled.
- 7,200 rpm 3.5-inch SAS and SATA NL drives meet client requirements for larger capacities and increased speeds in larger form factor.
- Up to 15,000 rpm speed to help optimize performance.
- Outstanding reliability that enables operation in RAID environments without compromising application performance or availability.

Features



Compatible products



IBM System x


Component for



Server/workstation


HDD capacity



500 GB


HDD size



3.5 "


HDD speed



7200 RPM


Hot-swap



Yes


Interface



SATA/600,Serial ATA III


Operational conditions



Operating altitude



0 - 2133 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



5 - 60 °C


Other features



Data transfer rate



6 Gbit/s


Depth (imperial)



5.8 "


Drive device speed



7200 RPM


Height (imperial)



1 "


Internal



Yes


Number of products included



1 pc(s)


Package dimensions (WxDxH)



203 x 244 x 146 mm


Width (imperial)



4 "


Package dimensions



Gross Weight (Package, kg)



1 kg


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



2.62 cm


Product Height



14.7 cm


Product Width



10.16 cm


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
