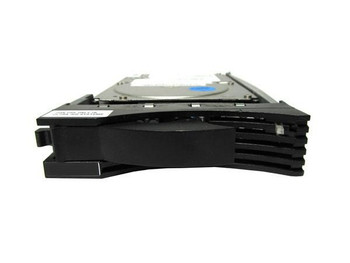

IBM 90P1392-RFB 2X 36.4GB U320 15K 90P1392-RFB

Increase your throughput in select xSeries servers with the next generation of high-speed Ultra320 SCSI hard disk drives (HDDs). Ultra320 SCSI drives provide top-of-the-line performance for business-critical, disk-intensive applications such as e-business, transaction processing, data maining and data warehousing. Ultra320 SCSI technology combines interface data transfer rates of up to 320MBps, reduced overhead and enhanced flow control to help deliver dramatic performance gains. This HDD option provides a high-performance, wide bandwidth data path to provide high levels of performance. And at 15,000rpm spindle speeds, these are IBM's highest-performing HDDs. Improved diagnostics and data protection, as well as hot-swap capabilities with direct docking, help reduce downtime. For even greater reliability, you can create high-perfomance RAID arrays. Simply connect your drives to either an onboard Ultra320 SCSI controller with integrated mirroring capabilities or an IBM ServeRAID-6M Controller, available on select xSeries servers.

Features & Benefits:� 3.5-inch, 1-inch high, slim-line form factor allows maximum installations in supported xSeries servers
� This HDD docks directly into the hot-swap backplane of supported Ultra320-compatible servers.
� Predictive Failure Analysis (PFA) can alert you of a problem before it occurs
� Rigorously tested through the IBM ServerProven program, giving you confidence that your xSeries storage subsystem is compatible and will function reliably
� Ultra320 SCSI interface provides wide bandwidth for multi-drive, concurrent, streaming data transfers
� 15,000rpm HDDs are IBM's top performing drives.

Features



Access time



5.8 Millisecond


Average latency



2 Millisecond


Average seek time



3.8 Millisecond


Component for



Server/workstation


HDD capacity



36 GB


HDD size



3.5 "


HDD speed



15000 RPM


Hot-swap



Yes


Interface



SCSI


Storage drive buffer size



8 MB


Type



HDD


Operational conditions



Operating temperature (T-T)



10 - 32 �C


Package dimensions



Gross Weight (Package, kg)



1 kg


Product dimensions



Net Weight (Product, kg)



0.78 kg


Product Depth



2.54 cm


Product Height



14.6 cm


Product Width



10.2 cm


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
