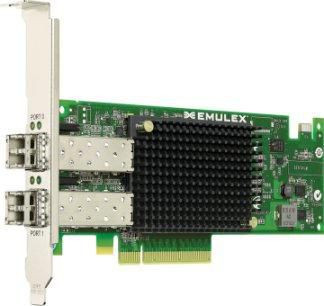

IBM 90Y6456-RFB Emulex Dual Port 10GbE SFP+ 90Y6456-RFB

The Emulex 10GbE Virtual Fabric Adapters II and III for IBM� System x� are members of IBM's comprehensive networking portfolio of 10 Gb Ethernet (10GbE) converged network adapters (CNAs). They deliver industry-leading performance and scalability per watt, reducing requirements for power and cooling. Storage protocol offloads enable the efficient use of computing resources and the support of more virtual machines per CPU, and reduce the number of servers required to support data center demands. The adapters support fiber-optic or twin-ax copper cabling to maximize flexibility.

Design



Internal



Yes


Network



Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 802.1Q


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Fiber Channel over Ethernet



Yes


Intelligent Offloads



Yes


Media types supported



SFP+ SWL (850 nm)


Package dimensions



Gross Weight (Package, kg)



1 kg


Packaging data



Quantity



1


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP+


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



1.7 cm


Product Height



16.7 cm


Product Width



6.9 cm


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
