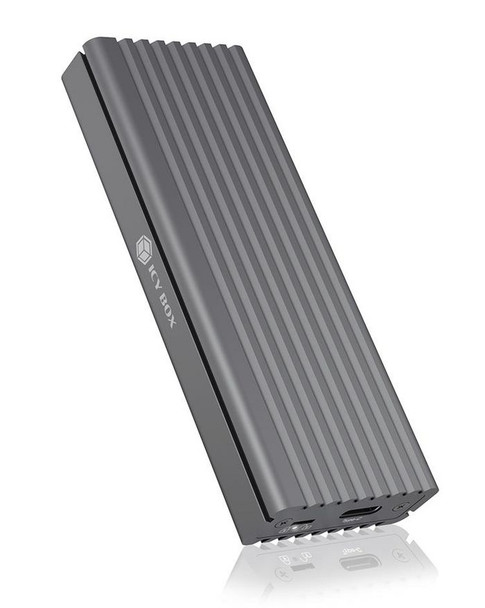

ICY BOX IB-1817M-C31 Ssd Enclosure Grey M.2 IB-1817M-C31

Keep it cool
The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.

Time is valuable
The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.

Click - Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.

Design



LED indicators



Y, Yes


Material



Aluminium


Product colour



Grey


Product type



SSD enclosure


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



2.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



20 cm


Width (package,cm)



10 cm


Packaging content



Cables included



USB Type-A to USB Type-C, USB Type-C to USB Type-C


Quick installation guide



Yes


Screwdriver included



Yes


Screws included



Yes


Performance



Chipset



JMS583


Data transfer rate



10 Gbit/s


Plug and Play



Yes


Ports & interfaces



USB connectivity



Yes


USB connector gender



Female


USB connector type



USB Type-C


USB ports quantity



1


USB version



3.2 Gen 2 (3.1 Gen 2)


Power



Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



10.5 cm


Product Height



1.5 cm


Product Width



4 cm


Storage



Number of storage drives supported



1


NVMe



Yes


Storage drive size



M.2 "


Supported storage drive heights



22


Supported storage drive interfaces



PCI Express 3.0


Supported storage drive lengths



30, 42, 60, 80


System requirements



Mac compatibility



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)


Weight & dimensions



Cable length



0.2 m
