Icy Box

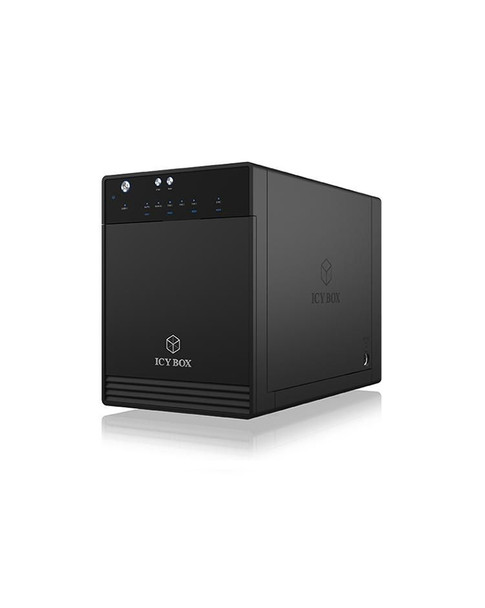

ICY BOX IB-3740-C31 Hdd/Ssd Enclosure Black IB-3740-C31
- UPC:
- 0000000000000
- MPN:
- IB-3740-C31
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
It�s the mix
Apart from the improved design, the advantage of the IB-3740-C31 is that it can support 2.5" and 3.5" drives. This makes the device an ideal candidate for users looking for the maximum amount of direct-attached storage space since traditional spinning disks can accommodate a significantly larger amount of data than the largest solid-state drives. If you�re looking to eke out maximum performance, however, you�ll want to use 2.5" SSDs instead.
For the environment
When the host device is not being used or if the data transfer cable is not connected the IB-3740-C31 turns itself into standby mode automatically. In addition, each drive bay has an LED indicator in order to provide information regarding HDD activity (read/write), fan settings, and sync status.
Fast data transfer
The connection between the host PC and the external enclosure is realized by a USB 3.1 Type-C� port. Thanks to the USB 3.1 (Gen 2) protocol a high data transfer rate of up to 10 Gbit/s can be achieved.
Design
Fan diameter
8 cm
LED indicators
Y, Yes
Material
Aluminium, Plastic
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Product type
HDD/SSD enclosure
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case gross weight
20.6 kg
Master (outer) case height
29 cm
Master (outer) case length
50.3 cm
Master (outer) case width
60.6 cm
Products per master (outer) case
6 pc(s)
Package dimensions
Depth (package,cm)
16 cm
Gross Weight (Package, kg)
4.1 kg
Height (package,cm)
27 cm
Width (package,cm)
29.5 cm
Packaging content
Cables included
USB Type-C
Manual
Yes
Screwdriver included
Yes
Screws included
Yes
Performance
Chipset
VIALabs VL820, VL715
Data transfer rate
10 Gbit/s
Plug and Play
Yes
UASP support
Yes
Ports & interfaces
DC-in jack
Yes
USB connectivity
Yes
USB connector gender
Female
USB connector type
USB Type-C
USB ports quantity
1
USB version
3.2 Gen 2 (3.1 Gen 2)
Power
AC adapter frequency
50 - 60 Hz
AC adapter input current
1.6 A
AC adapter input voltage
100 - 240 V
AC adapter output current
5 A
AC adapter output voltage
12 V
Power consumption (max)
60 Watt
Power source type
DC
Product dimensions
Net Weight (Product, kg)
3.15 kg
Product Depth
22.5 cm
Product Height
17 cm
Product Width
12.7 cm
Storage
Maximum storage capacity
10 TB
Number of storage drives supported
4
RAID levels
JBOD
Storage drive size
2.5/3.5 "
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
System requirements
Mac compatibility
Yes
Mac operating systems supported
Y, Yes
Windows operating systems supported
Y, Yes
Vendor information
Brand Name
ICY BOX
Warranty
2 Year(s)
Weight & dimensions
Cable length
1 m
View AllClose
Apart from the improved design, the advantage of the IB-3740-C31 is that it can support 2.5" and 3.5" drives. This makes the device an ideal candidate for users looking for the maximum amount of direct-attached storage space since traditional spinning disks can accommodate a significantly larger amount of data than the largest solid-state drives. If you�re looking to eke out maximum performance, however, you�ll want to use 2.5" SSDs instead.
For the environment
When the host device is not being used or if the data transfer cable is not connected the IB-3740-C31 turns itself into standby mode automatically. In addition, each drive bay has an LED indicator in order to provide information regarding HDD activity (read/write), fan settings, and sync status.
Fast data transfer
The connection between the host PC and the external enclosure is realized by a USB 3.1 Type-C� port. Thanks to the USB 3.1 (Gen 2) protocol a high data transfer rate of up to 10 Gbit/s can be achieved.
Design
Fan diameter
8 cm
LED indicators
Y, Yes
Material
Aluminium, Plastic
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Product type
HDD/SSD enclosure
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case gross weight
20.6 kg
Master (outer) case height
29 cm
Master (outer) case length
50.3 cm
Master (outer) case width
60.6 cm
Products per master (outer) case
6 pc(s)
Package dimensions
Depth (package,cm)
16 cm
Gross Weight (Package, kg)
4.1 kg
Height (package,cm)
27 cm
Width (package,cm)
29.5 cm
Packaging content
Cables included
USB Type-C
Manual
Yes
Screwdriver included
Yes
Screws included
Yes
Performance
Chipset
VIALabs VL820, VL715
Data transfer rate
10 Gbit/s
Plug and Play
Yes
UASP support
Yes
Ports & interfaces
DC-in jack
Yes
USB connectivity
Yes
USB connector gender
Female
USB connector type
USB Type-C
USB ports quantity
1
USB version
3.2 Gen 2 (3.1 Gen 2)
Power
AC adapter frequency
50 - 60 Hz
AC adapter input current
1.6 A
AC adapter input voltage
100 - 240 V
AC adapter output current
5 A
AC adapter output voltage
12 V
Power consumption (max)
60 Watt
Power source type
DC
Product dimensions
Net Weight (Product, kg)
3.15 kg
Product Depth
22.5 cm
Product Height
17 cm
Product Width
12.7 cm
Storage
Maximum storage capacity
10 TB
Number of storage drives supported
4
RAID levels
JBOD
Storage drive size
2.5/3.5 "
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
System requirements
Mac compatibility
Yes
Mac operating systems supported
Y, Yes
Windows operating systems supported
Y, Yes
Vendor information
Brand Name
ICY BOX
Warranty
2 Year(s)
Weight & dimensions
Cable length
1 m
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
