Icy Box

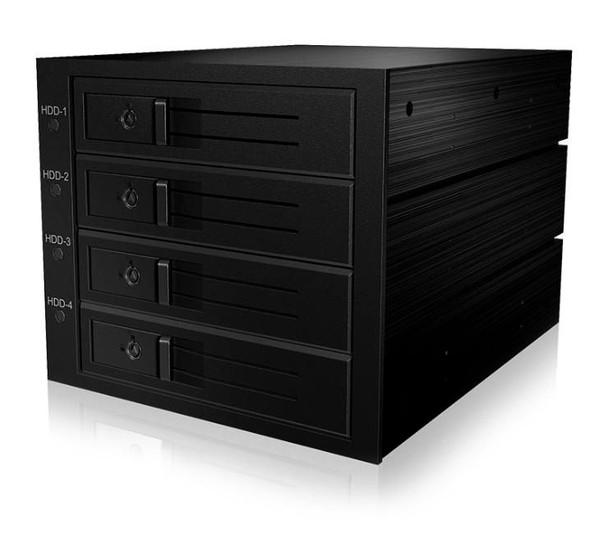

ICY BOX IB-564SAS-12G Disk Array Black IB-564SAS-12G
(No reviews yet)
Write a Review
- UPC:
- 4250078169529
- MPN:
- IB-564SAS-12G
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Stress resistant
The best materials are used in the case and make this 3.5" hard disk solution the ideal partner for extreme loads. The Back Plane with its lockable bays is also ideally equipped for security requirements.
Cool and silent
The active 80x80 mm fan works efficiently and adapts the temperatures as needed, keeping the case fairly quiet. But also the processed Alumimun contributes to the passive convection to the environment.
Realtime
Optical and acoustic signals report the current status of the hard disks and the fan at all times. The alarm temperature for the signal can be set to three levels (55� C, 60� C, 65� C).
Design
Cooling
Yes
Fan diameter
8 cm
Housing material
Aluminium
Internal
No
Key lock
Yes
LED indicators
Access, Error, Power
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84717020
Package dimensions
Depth (package,cm)
16.2 cm
Gross Weight (Package, kg)
2.63 kg
Height (package,cm)
18 cm
Width (package,cm)
25.2 cm
Packaging content
Screws included
Yes
Performance
Device class
Home & Home Office
Ports & interfaces
Mini-SAS host port
Yes
Number of mini-SAS host ports
1
Number of SAS host ports
4
Number of SATA power connectors
1
SATA host port
Yes
SATA power connector type
SATA 15-pin
USB connectivity
No
Product dimensions
Net Weight (Product, kg)
2.02 kg
Product Depth
19.5 cm
Product Height
4 cm
Product Width
14.5 cm
Storage
Data transfer rate
12 Gbit/s
Hot-swap drive bays
Yes
Installed storage drive type
No
Number of storage drives supported
4
Storage drive sizes supported
3.5
Storage drives installed
No
Supported storage drive interfaces
SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive types
HDD
System requirements
Mac compatibility
Yes
Mac operating systems supported
Y, Yes
Windows operating systems supported
Y, Yes
Vendor information
Brand Name
ICY BOX
Warranty
2 Year(s)
View AllClose
The best materials are used in the case and make this 3.5" hard disk solution the ideal partner for extreme loads. The Back Plane with its lockable bays is also ideally equipped for security requirements.
Cool and silent
The active 80x80 mm fan works efficiently and adapts the temperatures as needed, keeping the case fairly quiet. But also the processed Alumimun contributes to the passive convection to the environment.
Realtime
Optical and acoustic signals report the current status of the hard disks and the fan at all times. The alarm temperature for the signal can be set to three levels (55� C, 60� C, 65� C).
Design
Cooling
Yes
Fan diameter
8 cm
Housing material
Aluminium
Internal
No
Key lock
Yes
LED indicators
Access, Error, Power
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84717020
Package dimensions
Depth (package,cm)
16.2 cm
Gross Weight (Package, kg)
2.63 kg
Height (package,cm)
18 cm
Width (package,cm)
25.2 cm
Packaging content
Screws included
Yes
Performance
Device class
Home & Home Office
Ports & interfaces
Mini-SAS host port
Yes
Number of mini-SAS host ports
1
Number of SAS host ports
4
Number of SATA power connectors
1
SATA host port
Yes
SATA power connector type
SATA 15-pin
USB connectivity
No
Product dimensions
Net Weight (Product, kg)
2.02 kg
Product Depth
19.5 cm
Product Height
4 cm
Product Width
14.5 cm
Storage
Data transfer rate
12 Gbit/s
Hot-swap drive bays
Yes
Installed storage drive type
No
Number of storage drives supported
4
Storage drive sizes supported
3.5
Storage drives installed
No
Supported storage drive interfaces
SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive types
HDD
System requirements
Mac compatibility
Yes
Mac operating systems supported
Y, Yes
Windows operating systems supported
Y, Yes
Vendor information
Brand Name
ICY BOX
Warranty
2 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
